Rosemount 5301 Guided Wave Radar 5301HA2S1E4AM00100BAE7M1
$ 7,540
Lead Time: 3 Weeks
Shipping:
Free shipping on orders over $199 within the USA.
International shipping available upon request.
5301HA2S1E4AM00100BAE7M1 Guided Wave Radar Transmitter
-
High-accuracy liquid level and interface measurement
-
4-20 mA with HART communication for system integration
-
Robust stainless-steel probe construction with Ethylene Propylene sealing
-
Operates under pressures up to 754 psig (52 bar) and 302 °F (150 °C)
-
IECEx flameproof certified for hazardous applications
-
Integral digital display for easy monitoring and configuration
-
Suitable for challenging process conditions in industrial environments

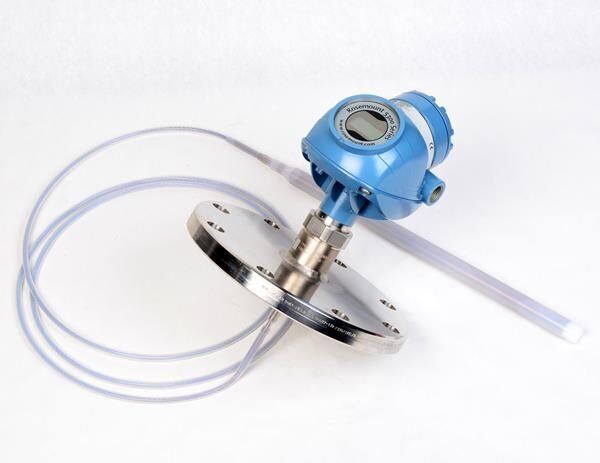

Rosemount 5301 Guided Wave Radar 5301HA2S1E4AM00100BAE7M1
The Rosemount 5301 Guided Wave Radar (GWR) transmitter is designed for accurate and reliable liquid level and interface measurement. Using advanced radar-based technology, it provides continuous level monitoring even under challenging process conditions. This model is built with robust materials, high-pressure resistance, and HART communication for seamless integration into control systems. With its rigid single lead probe, it is ideal for a wide range of industrial applications requiring precision, durability, and safety.
Specifications
| Specification | Details |
|---|---|
| Brand | Rosemount Inc. |
| Product Type | Guided Wave Radar (Liquid Level Transmitter) |
| Series | 5301 |
| Part Number | 5301HA2S1E4AM00100BAE7M1 |
| Output Signal | 4-20 mA with HART communication |
| Housing Material | Polyurethane-covered Aluminum |
| Cable / Conduit Entry | M20 x 1.5 adapter |
| Operating Pressure/Temperature | -15 psig (-1 bar) to 754 psig (52 bar) at 302 °F (150 °C) |
| Construction Material | 316/316L Stainless Steel (EN 1.4404) |
| Sealing O-Ring Material | Ethylene Propylene |
| Probe Type | Rigid Single Lead |
| Probe Length Range | Min: 0.4 m (1’4”) |
| Probe Length Units | Metric (meters/centimeters) |
| Process Connection | 3 in. ANSI Class 150 flange |
| Certifications | IECEx Flameproof |
| Display | Integral digital display |
