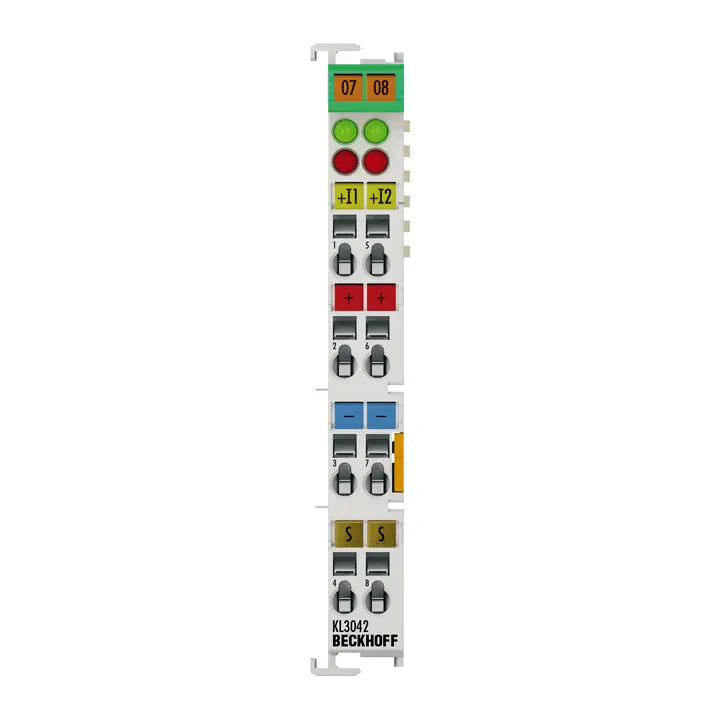

Beckhoff KL3042 2-Channel Analog Input Bus Terminal (0…20 mA, 12-Bit, Single-Ended)
$ 175
KL3042
-
2-channel analog input terminal for 0…20 mA current measurement
-
12-bit resolution for precise analog signal acquisition
-
Electrical isolation between signal and K-bus
-
Single-ended measurement technology
-
Integrated sensor supply via power contacts
-
LED status indicators for data exchange and error detection
-
ATEX and IECEx certified for hazardous area applications
Beckhoff KL3042 2-Channel Analog Input Bus Terminal (0…20 mA, 12-Bit, Single-Ended)
The Beckhoff KL3042 is a 2-channel analog input Bus Terminal designed to power measuring transducers in the field and transmit analog measurement signals to automation devices with electrical isolation. It supports a 0…20 mA current input range, features 12-bit resolution, and uses single-ended measurement technology. Sensor voltage is supplied via the power contacts, which can be fed in the standard way or through an electrically isolated power feed terminal (KL9xxx). Independent of power contact supply voltage, the KL3042 provides stable measurement performance. Run LEDs indicate data exchange with the Bus Coupler, while error LEDs signal overloads and broken wires.
| Specification | Details |
|---|---|
| Number of Inputs | 2 |
| Power Supply | 24 V DC via power contacts |
| Signal Current | 0…20 mA |
| Technology | Single-ended |
| Internal Resistance | 80 Ω + diode voltage 0.7 V |
| Common-Mode Voltage (UCM) | – |
| Conversion Time | ~ 2 ms |
| Resolution | 12 bit |
| Measurement Error/Uncertainty | < ±0.3% (relative to full scale) |
| Surge Voltage Resistance | Max. 35 V |
| Electrical Isolation | 500 V (K-bus/signal voltage) |
| Current Consumption (Power Contacts) | Load only |
| Current Consumption (K-bus) | Typ. 65 mA |
| Bit Width in Process Image | Input: 2 × 16-bit data (2 × 8-bit control/status optional) |
| Configuration | No address or configuration setting required |
| Special Features | With sensor supply |
| Weight | Approx. 70 g |
| Operating Temperature | -25 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 compliant |
| EMC Immunity/Emission | EN 61000-6-2 / EN 61000-6-4 compliant |
| Protection Rating / Installation Position | IP20 / Variable |
| Pluggable Wiring | For all KSxxxx Bus Terminals |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV GL |
| Ex Marking (ATEX) | II 3 G Ex ec IIC T4 Gc |
| Ex Marking (IECEx) | Ex ec IIC T4 Gc |
