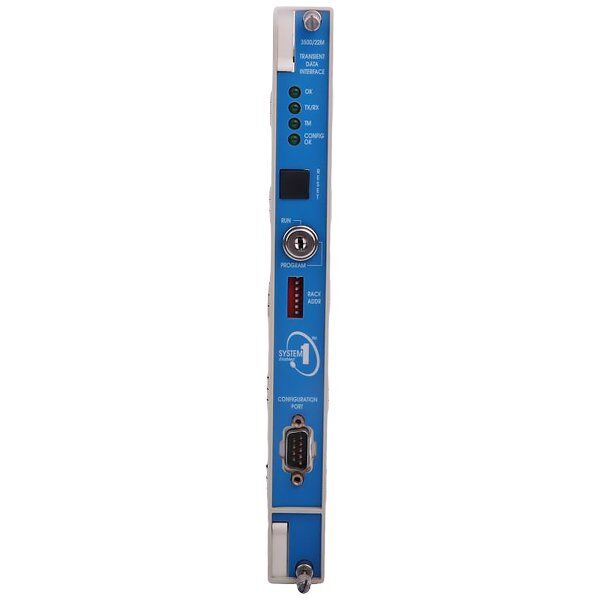

Bently Nevada Transient Data Interface Module 3500/22M
$ 6,500
Part No: 3500/22M
• Central communication interface for 3500 racks
• Supports Modbus and Ethernet connectivity
• Enables transient and static data monitoring
• Redundant Ethernet ports for reliability
Description
Bently Nevada Transient Data Interface Module 3500/22M
The Bently Nevada 3500/22M is a Transient Data Interface (TDI) module designed for integration into the 3500 Series Machinery Protection System. It serves as the central interface between the rack and external communication networks, enabling advanced diagnostics, configuration, and real-time transient data acquisition.
| Specification | Detail |
|---|---|
| Product Type | Transient Data Interface Module |
| Series | Bently Nevada 3500 Series |
| Slot Requirement | Located in Rack Slot 1 |
| Communication Protocols | Ethernet, Modbus TCP/IP, Proprietary Protocols |
| Data Interface | Static and dynamic machine data |
| Power Supply | 18–36 VDC |
| Operating Temperature Range | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 0% to 95% RH non-condensing |
| Data Logging | Transient and static data collection |
| Vibration Limit | 5 g at 60 Hz |
| Shock Limit | 30 g peak, 11 ms half-sine |
| Slot Occupancy | Full-height slot |
| Configuration | Via System 1 Software or Rack LCD Display |
| Mounting | 3500 rack installation |
| Interface Types | Dual Ethernet Ports (redundant capable) |
| Compatibility | Works with 3500 Monitoring Modules |
| Firmware Upgradeable | Yes |
| Status Display | OK, TX/RX, CONFIG, LED Indicators |
