DEWATERING PUMP 6 INCH WITH KIRLOSKAR HA 394 ENGINE – RACORS 150
$ 12,741
Part No: Kirloskar Engine HA394 – Racors 150

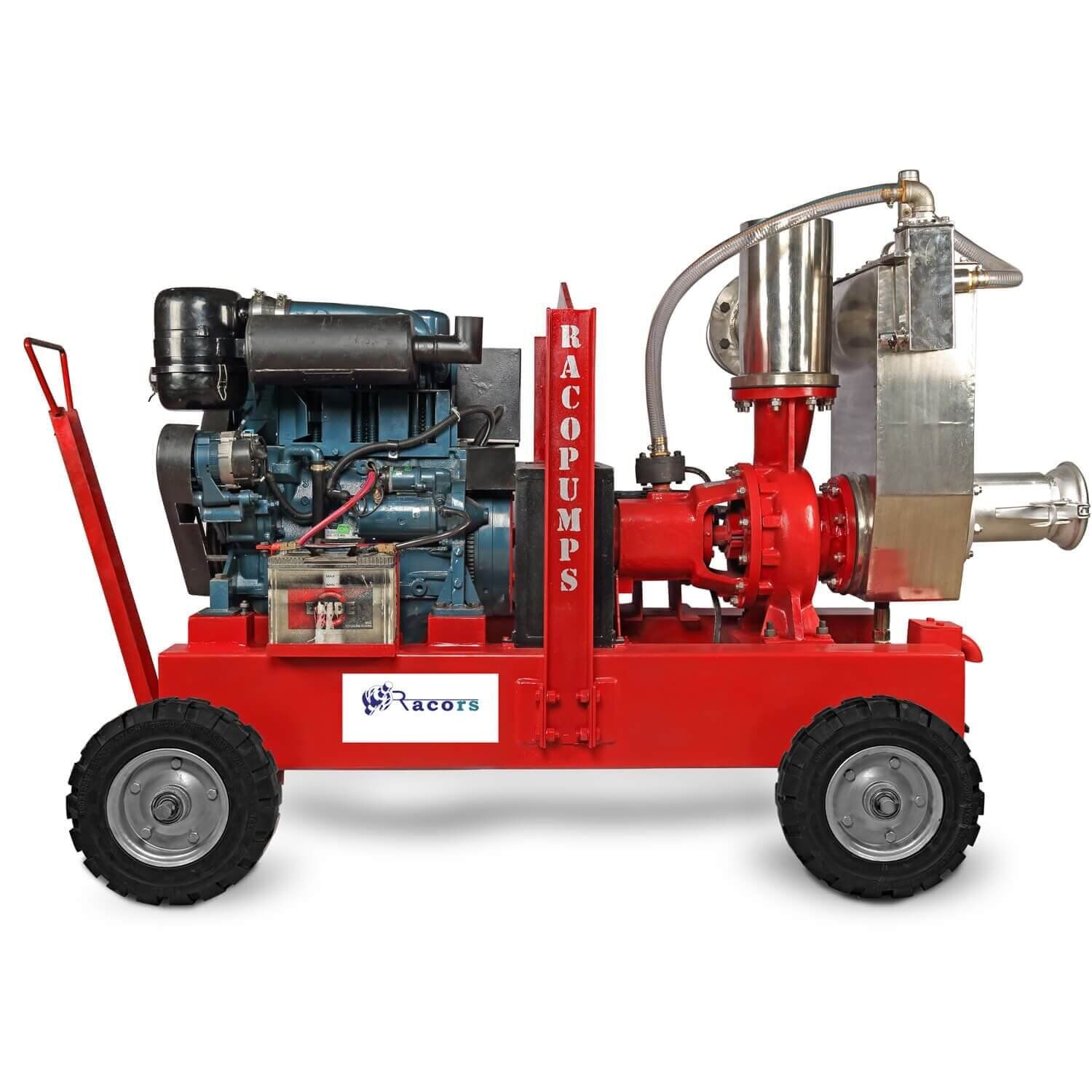

The Racors 150 Dewatering Pump is a high-performance 6-inch pump powered by a Kirloskar HA394 air-cooled diesel engine. It is ideal for sewage, drainage, irrigation, and over-pumping applications, featuring a closed impeller (open impeller optional) and a double mechanical seal for maximum efficiency. The high-grade cast iron volute casing and stainless steel internal components ensure durability. It offers a 350 m³/hr flow rate, 40m head, and 2” solid handling capacity. Mounted on a four-wheel chassis with a 160-liter fuel tank, this unit is designed for portability and efficiency in demanding environments.
Dewatering Pump 6 Inch with Kirloskar Engine HA394, 3 Cylinder Air-Cooled Diesel Engine
This 6-inch dewatering pump is designed for sewage, drainage, over-pumping, irrigation, and chiller plants. The suction and discharge sizes are 150 x 150 mm (6” x 6”), with a closed-type impeller and mechanical seal (open-type impeller available upon request).
The priming tank is made of mild steel or stainless steel (aluminum option available), while the internal components consist of Teflon and stainless steel, ensuring increased durability and efficiency. The volute casing is crafted from cast iron (stainless steel optional) and designed for optimal discharge performance. The shaft, impeller, stuffing box, and all other internal parts are made from stainless steel for extended operational life.
We also manufacture pumps tailored to customer requirements, including open impeller pumps, electric motor-driven pumps, 2/4 wheel types, skid-mounted versions, and material of construction (MOC) customization.
Features and Benefits
-
Easy Maintenance: Routine maintenance involves checking oil levels and filters.
-
Versatile Applications: Suitable for handling sewage, slurries, and liquids containing solids up to 2 inches in diameter.
-
Dry-Running High-Pressure Liquid Bath: Enhances longevity and performance.
-
Double Mechanical Seal: High-abrasion-resistant solid silicon carbide seal faces.
-
Dri-Prime System: A centrifugal pump with a Dri-Prime system, powered by a diesel engine or electric motor.
-
Multiple Engine Options: Compatible with the Kirloskar HA394 diesel engine or an electric motor.
Pump Specifications
| Specification | Details |
|---|---|
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m³/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 m |
| Max. Suction Lift | 9 m |
| Max. Solid Handling | 2” |
| Pump Make | Racors |
| Pump Model | Racors 150 |
Engine Specifications
| Specification | Details |
|---|---|
| Engine | Kirloskar HA 394, 3 Cylinder, Air-Cooled Diesel Engine |
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting System | Electric with Starter Motor |
| Additional Features | Charging Alternator, Oil Bath Air Cleaner, Fuel Injection Pump, Oil Filter, Engine-Mounted Exhaust Silencer, Manual Shut-Off, Wire Harness & Starting Panel |
Material of Construction
| Component | Material |
|---|---|
| Volute Casing | High-Grade Cast Iron |
| Pump Shaft | Stainless Steel (SS-304) |
| Impeller | Stainless Steel (SS-304) |
| Stuffing Box | Stainless Steel (SS-304) with Double Mechanical Seal (Oil Bath for Enhanced Efficiency & Durability) |
| Priming Tank | Mild Steel |
| Mounting | Portable Four-Wheel Chassis with Built-in 160-Liter Fuel Tank |
Weight & Dimensions
| Specification | Value |
|---|---|
| Weight Without Engine | 550 kg |
| Weight With Engine | 950 kg |
| Container Capacity (40ft) | 12 Units |
| Container Capacity (20ft) | 6 Units |
| Dimensions (L x W x H) | 214 x 213 x 153 cm |
