DURAG Flame Monitor D-LX 100 UA/94 EX
$ 8,750Each
Lead Time
3-5 Weeks
Ex-Works
USA
Shipping
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.
Key Features
-
Designed for reliable flame supervision in hazardous industrial environments.
-
Provides a stable analog signal for flame intensity monitoring and control integration.
-
Certified explosion-proof design suitable for ATEX Zone 2 installations.
-
Compact IP65 housing ensures protection against dust and water ingress.
-
Fast response time supports burner safety and combustion control systems.

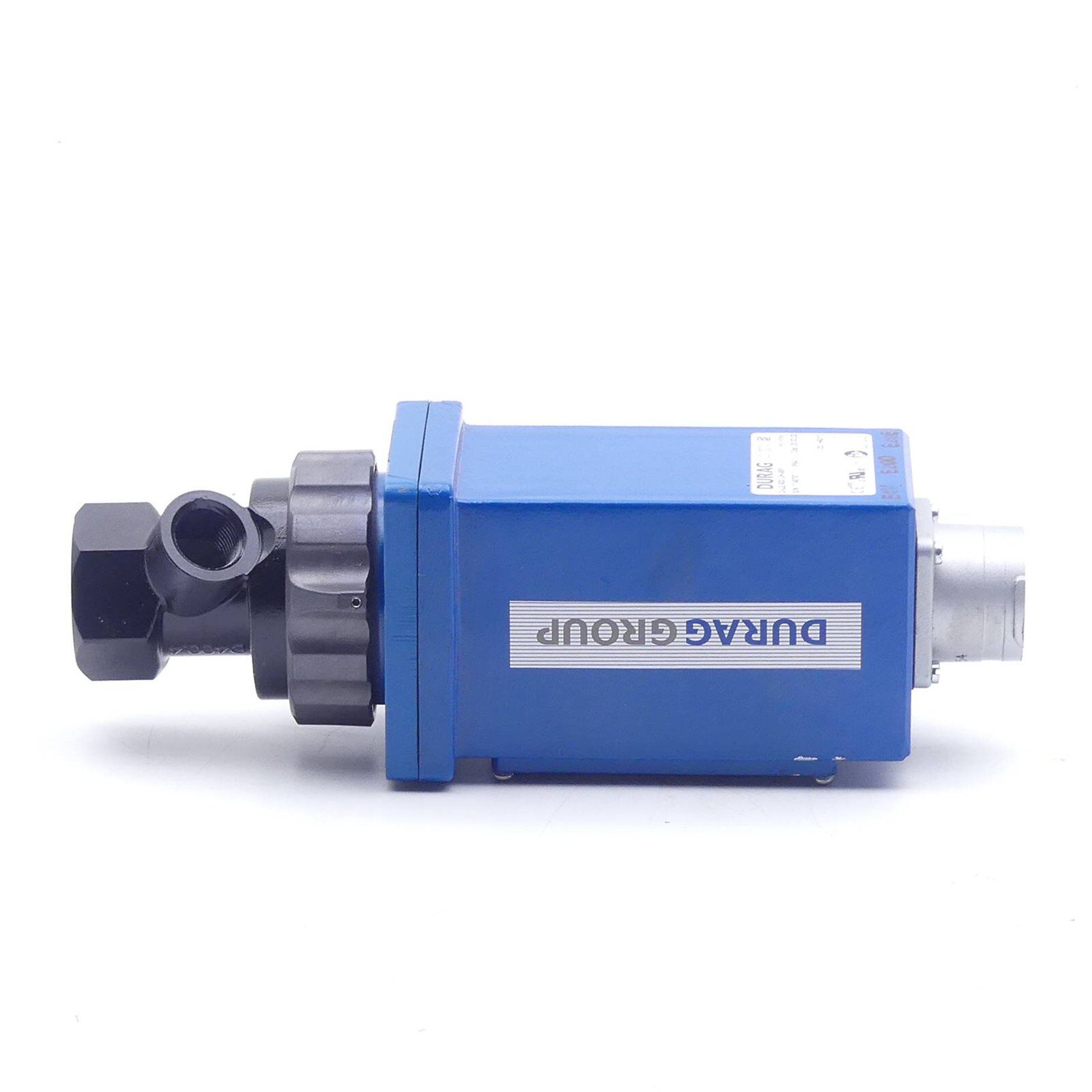

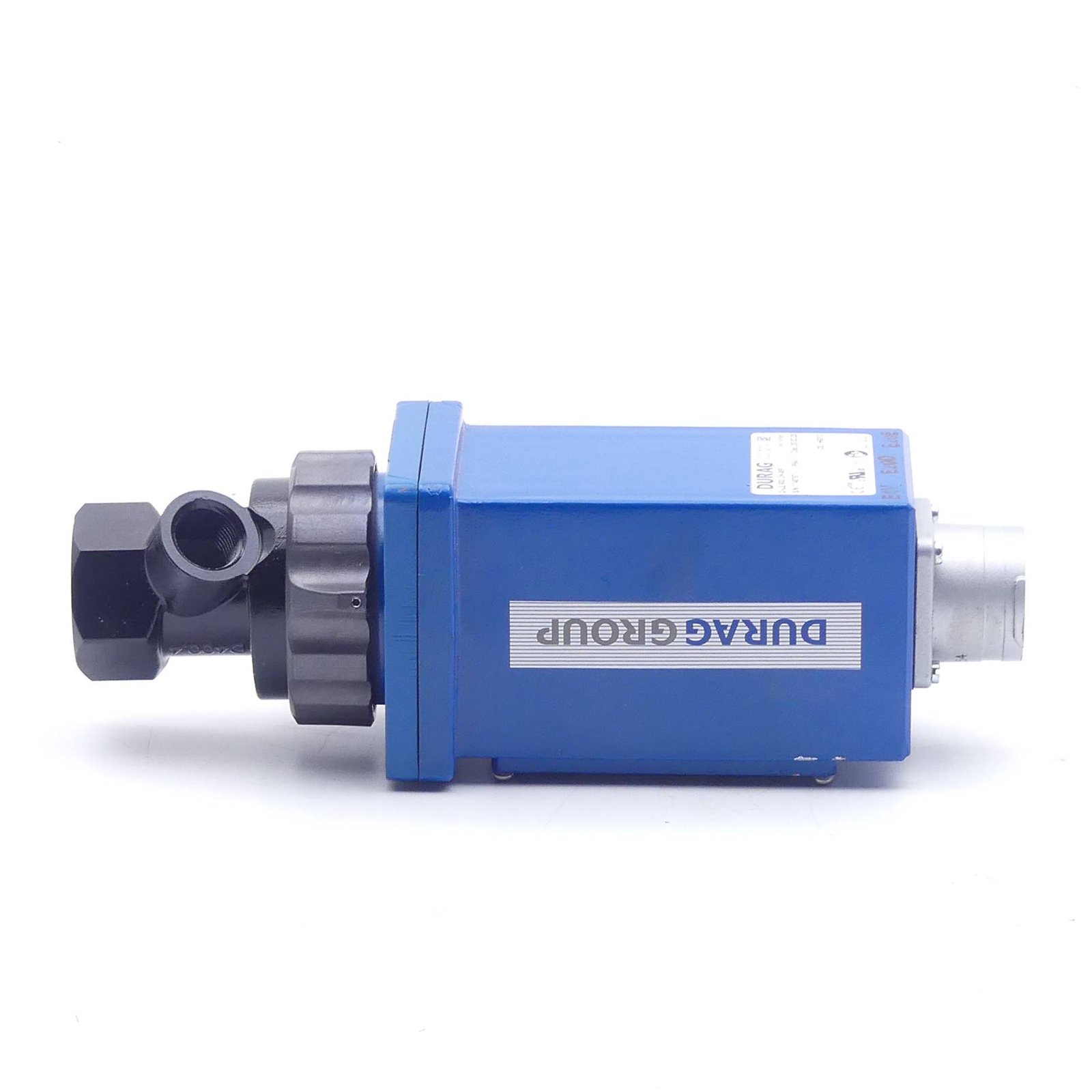

DURAG D-LX 100 UA/94 EX Flame Monitor
The DURAG D-LX 100 UA/94 EX Flame Monitor is a compact, explosion-protected device designed for continuous flame supervision in industrial combustion systems. It is used to reliably monitor burner flames in boilers, furnaces, incinerators, and process heating applications operating in hazardous environments. The unit provides a stable analog output for flame intensity, ensuring safe burner operation and fast fault detection. Its rugged IP65 enclosure, ATEX certification, and wide ambient temperature range make it suitable for demanding industrial conditions.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | DURAG |
| Product Type | Flame Monitor |
| Part Number | D-LX 100 UA/94 EX |
| Function | Continuous monitoring of flame presence and intensity |
| Application | Industrial burners, boilers, furnaces, combustion systems |
| Output Signal | 4–20 mA |
| Supply Voltage | 24 VDC |
| Power Consumption | 5 W |
| Safety Time | 1 s |
| Protection Class | IP65 |
| Explosion Protection | ATEX II 3G EEx nAnC IIC T6 |
| Ambient Temperature | -20 °C to +60 °C |
| Mounting | Mechanical mounting via sight tube |
| Compliance | CE, ATEX |
| Housing | Industrial metal enclosure |
