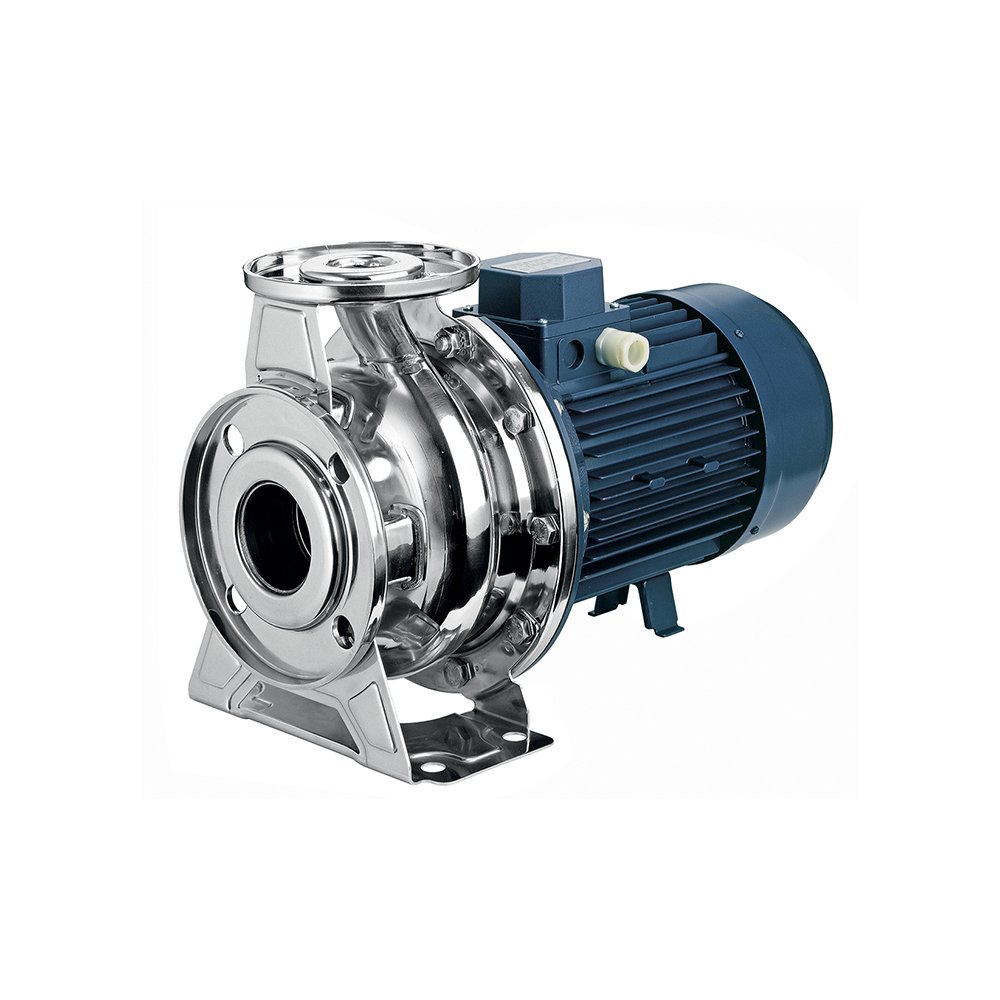

EBARA 3LM/I 80‑160/18,56 Centrifugal Pump 1393180116I
$ 7,235Each
Lead Time : 4‑6 Weeks
Ex-Works : USA
Key Features
-
Robust stainless‑steel centrifugal design for long service life and corrosion resistance
-
High‑capacity flow handling suitable for industrial and commercial water systems
-
Efficient 60 Hz operation tailored for export and plant use in 60 Hz regions
-
Mechanical seal and industrial‑grade IP55 motor protection for durability
-
Horizontal end‑suction configuration for easy installation and maintenance
EBARA 3LM/I 80‑160/18,56 Centrifugal Pump 1393180116I
The EBARA 3LM/I 80‑160/18,56 is a premium industrial centrifugal pump engineered for high‑performance fluid handling in commercial and industrial applications. Manufactured in Italy with robust stainless‑steel construction, this model delivers reliable water transfer and pressure boosting capabilities for systems operating at 60 Hz. Designed for horizontal installation and continuous duty, it is ideal for water supply, circulation, HVAC systems, irrigation, and various industrial fluid moving tasks that demand durability and efficiency.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | EBARA |
| Product Type | Horizontal Centrifugal Pump |
| Part Number | 3LM/I 80‑160/18,56 – 1393180116I |
| Model | 3LM/I 80‑160/18,56 |
| Function | Fluid transfer and pressurization |
| Application | Water supply, circulation, industrial fluid handling |
| Country of Origin | Italy |
| Pump Type | End‑suction centrifugal pump |
| Drive Type | Electric motor‑driven |
| Operating Frequency | 60 Hz |
| Flow Rate | Approx. 78 to 240 m³/h (varies by configuration) |
| Maximum Head | ~20 to 39 m (typical range for 18.5 kW class) |
| Motor Power | ~18.5 kW (approx. for class 18.56) |
| Impeller | Single‑stage centrifugal |
| Suction/Discharge Size | DN100 / DN80 |
| Material | Stainless steel (AISI 316 or similar) |
| Seal Type | Mechanical seal (SiC/SiC/FPM typical) |
| Protection Degree | IP55 (motor) |
| Mounting | Horizontal, end‑suction |
| Weight | ~139 kg (approx.) |
