Flexitallic CG 316L/FG/CS Gasket 160060208
$ 90
Shipping Details:
-
Lead Time: 2–3 Weeks
-
Free Shipping on Orders Over $199 Within USA
-
Get a quote for international shipping
Part No: 160060208
-

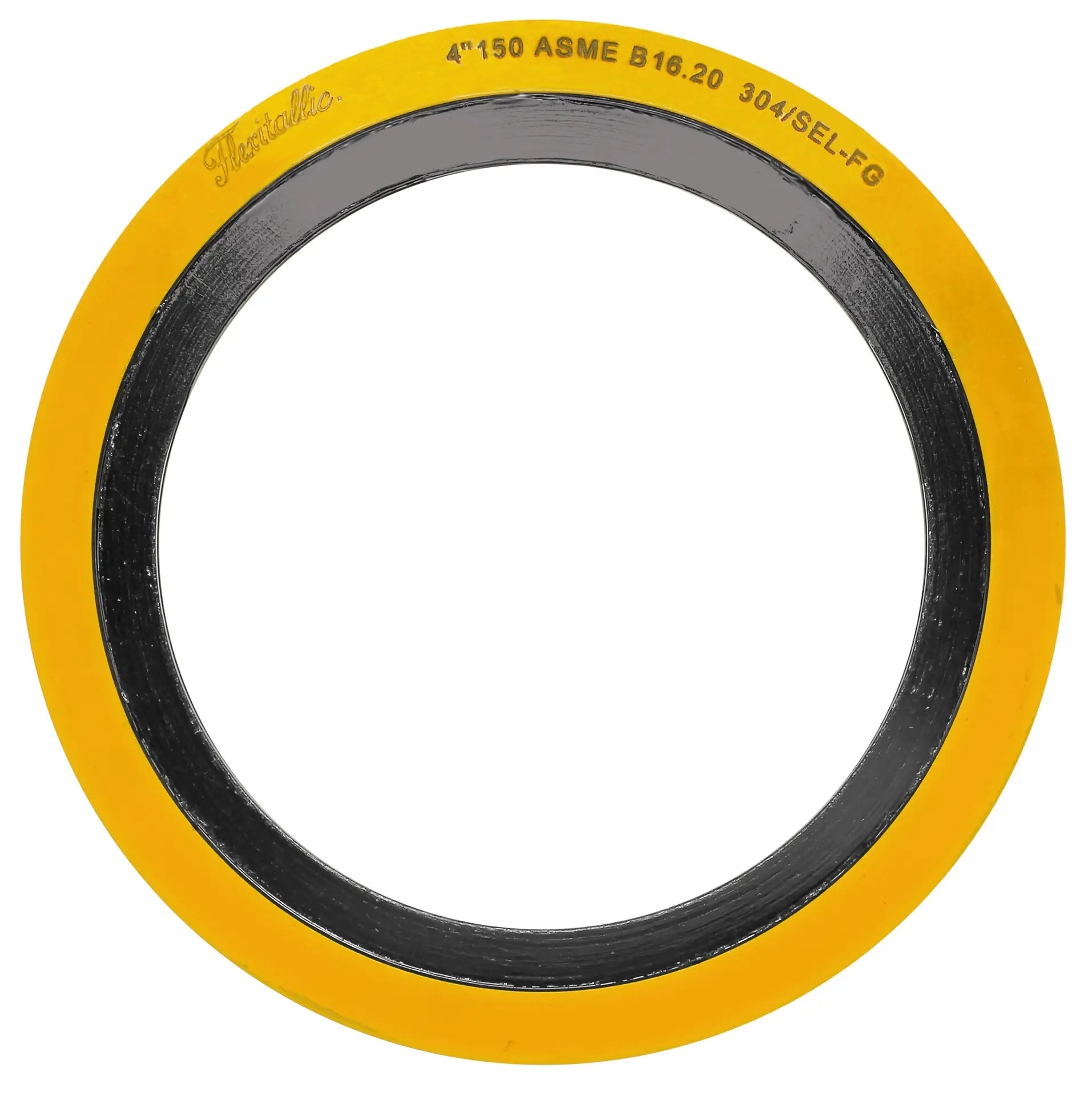

Spiral wound gasket with stainless steel 316L and graphite filler
-
Carbon steel outer ring for additional strength and compression control
-
Built to ASME B16.20 standard for reliability
-
Designed for demanding sealing requirements in energy and industrial sectors
Flexitallic CG 316L/FG/CS Gasket 160060208
The Flexitallic CG 316L/FG/CS Gasket is a high-performance spiral wound gasket engineered for superior sealing in high-pressure and high-temperature applications. Manufactured to ASME B16.20 standards, it features a stainless steel 316L winding with flexible graphite filler and a carbon steel outer ring for optimal strength and reliability. This gasket is ideal for critical sealing in oil & gas, petrochemical, and industrial power applications.
| Specification | Information |
|---|---|
| Brand | Flexitallic |
| Product Type | Spiral Wound Gasket |
| Model | CG 316L/FG/CS |
| Part Number | 160060208 |
| Standard | ASME B16.20 |
| Dimensions | 16.25 x 18.25 x 22.25 x 0.175 in |
| Pressure Class | 600 lb |
| Material | Stainless Steel 316L with Graphite Filler & Carbon Steel Outer Ring |
| Application | High-pressure & high-temperature sealing |
| Condition | New & Original |
| Warranty | Manufacturer Warranty |
| Lead Time | 2–3 Weeks |
