Foxboro Capillary DP Level Transmitter IDP10-TS-ID01E-M2L1
$ 3,470Each
Lead Time: 2 Weeks
Ex-Works: USA
Key Features
-
Capillary DP technology for precise level measurement
-
Flanged connections rated for high-pressure operation
-
Suitable for cogen gas knock-out drum applications
-
6-meter capillary length allows flexible installation
-
Robust design ensures reliable performance in demanding industrial conditions

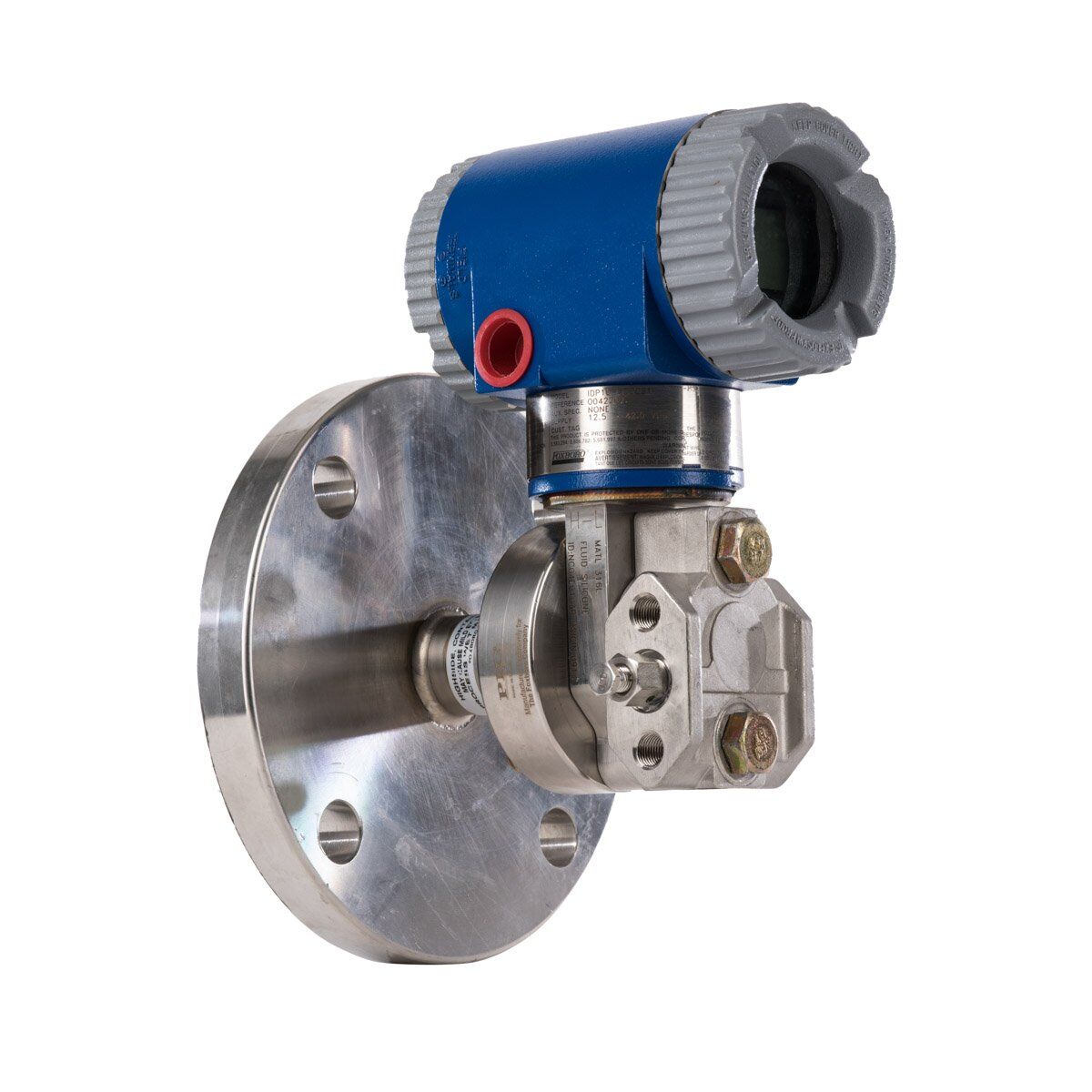

Foxboro Capillary DP Level Transmitter IDP10-TS-ID01E-M2L1
The Foxboro IDP10-TS-ID01E-M2L1 Capillary Differential Pressure (DP) Level Transmitter is a precision instrument designed for accurate level measurement in industrial process systems. Specifically configured for cogen gas knock-out drum applications, it operates within a measurement range of 1.33 at 12 bar and supports flanged 1-inch connections rated for 300 x 600 LB. Its 6-meter capillary length and robust construction ensure reliable performance in high-pressure, high-temperature industrial environments.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Foxboro |
| Product Type | Capillary DP Level Transmitter |
| Part Number | IDP10-TS-ID01E-M2L1 |
| Function | Measures liquid level using differential pressure |
| Application | Cogen gas knock-out drum, industrial level measurement |
| Measurement Range | 1.33 at 12 bar |
| Connection Size | 1 inch |
| Connection Type | Flanged |
| Pressure Rating | 300 x 600 LB |
| Capillary Length | 6 meters |
| Equipment Tag No | 25-LIT-1902 |
| Seal No | PSFAR-A312SS15CS14D |
| Mounting | Flanged with capillary installation |
