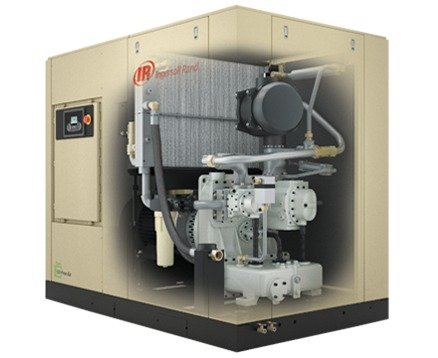

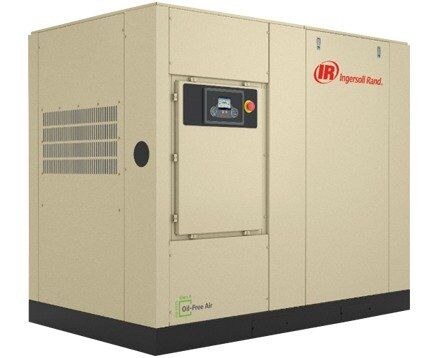

Ingersoll Rand SM55 Oil-Free Rotary Screw Air Compressor
$ 59,000
Part No: SM55
Ingersoll Rand SM55 55KW Oil-Free Screw Air Compressor – Premium air-cooled, two-stage rotary screw compressor delivering 8.7 m³/min at 8.5 bar. Equipped with a high-efficiency 55kW motor, UltraCoat™ rotor protection, and ISO Class 0 oil-free certification, ideal for pharmaceutical, food, and electronics industries requiring contaminant-free compressed air.
Description
| Feature | Description |
|---|---|
| Brand | Ingersoll Rand |
| Part Number | SM55 |
| Compressor Type | Two-stage oil-free rotary screw |
| Motor | 55kW high-efficiency TEFC motor (380–415V / 3PH / 50Hz) |
| Capacity (m³/min) | 8.7 |
| Capacity (CFM) | 307 |
| Working Pressure | 8.5 bar |
| Max Pressure | 8.5 bar |
| Compression Stages | 2 |
| Cooling Type | Air-cooled aftercooler with moisture separator |
| Sealing System | Stainless-steel air seals, labyrinth oil seals |
| Rotor Technology | UltraCoat™ coated rotors with precision-machined gears |
| Control System | Intellisys™ with automatic and remote start/stop |
| Controller Type | Xe |
| Noise Level @1m | 76 dB(A) |
| Ambient Temperature Range | 5°C to 40°C |
| Operating Pressure Range | 7 bar |
| Drive Type | Direct |
| Power Supply | Electric |
| Voltage | 415V |
| Air Quality Certification | ISO 8573-1:2010 Class 0 (oil-free) |
OPTIONS:
| Option | Description |
|---|---|
| Power Outage Restart (PORO) | Auto-resume functionality post power outage |
| Remote Control Package | Dry contact interface, remote start/stop, status, alarm |
| High Dust Filter | Additional protection in dusty environments |
| IP65/NEMA 4 Electrical Fittings | For robust outdoor/industrial protection |
| Outdoor Modification Kit | Enables outdoor installation with weather protection |
| Motor Space Heater | Prevents condensation-related motor issues |
| Control Box Space Heater | Maintains optimal panel temperature |
| Duplex Oil Filters | Extended maintenance intervals with dual filters |
