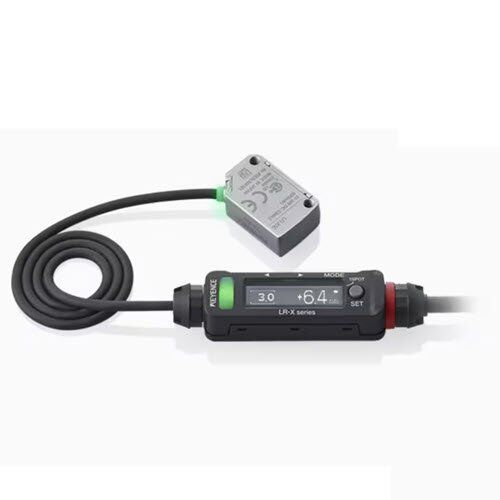

Keyence LR-X250C Laser Sensor M8 Connector Type
$ 305
Part No: LR-X250C
-
Compact high-precision laser sensor
-
Wide 30–250 mm detection range
-
IP65/IP67 rated for harsh environments
-
Class 1 green laser for safety and accuracy
Description
Keyence LR-X250C Laser Sensor M8 Connector Type
The Keyence LR-X250C is a compact and high-precision laser sensor with an M8 connector type, offering a detecting distance range of 30 to 250 mm. It delivers exceptional accuracy with selectable response times, a Class 1 green laser for reliable detection, and IP65/IP67 protection for harsh industrial environments. This sensor is ideal for precise positioning, measurement, and quality control applications.
| Specification | Detail |
|---|---|
| Model | LR-X250C |
| Type | M8 Connector Type |
| Detecting Distance | 30 to 250 mm (1.18″ to 9.84″) |
| Standard Detectable Deviation | 30–180 mm: 9 mm (0.35″); 180–250 mm: 18 mm (0.71″) |
| Display Resolution | 1 to 2 mm (0.04″ to 0.08″) |
| Spot Size | Approx. 0.8 × 1.2 mm (0.03″ × 0.05″) at 250 mm |
| Response Time | 500 µs / 1 ms / 3 ms / 10 ms / 200 ms selectable |
| Light Source | Green laser (505 nm) |
| Laser Class | Class 1 Laser Product (IEC60825-1, FDA (CDRH), Part 1040.10) |
| IO-Link | Specification v1.1 / COM2 (38.4 kbps) |
| Timer Function | OFF, Off-delay, On-delay, One-shot, On-Off delay, On-delay One-shot |
| Control Output | NPN/PNP open collector, N.O./N.C. selectable, 30 VDC max, 50 mA max |
| External Input | Multiple selectable functions |
| Protection Circuit | Reverse power, overcurrent, surge, reverse output protection |
| Power Voltage | 16–30 VDC |
| Power Consumption | Normal: 970 mW; ECO: 821 mW |
| Enclosure Rating | IP65/IP67 |
| Ambient Light | Incandescent ≤ 8000 lux, Sunlight ≤ 8000 lux |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Humidity | 35–85% RH (no condensation) |
| Vibration Resistance | 10–500 Hz; PSD: 0.816 G²/Hz (X, Y, Z axes) |
| Shock Resistance | 1000 m/s² (100G), 6 times per axis |
| Material | SUS316L, PSU, FKM, EVM, PVC, PBT, PAR, NBR, POM, SUS303 |
| Weight | Approx. 35 g |
| Accessories | Instruction manual, laser warning label |
