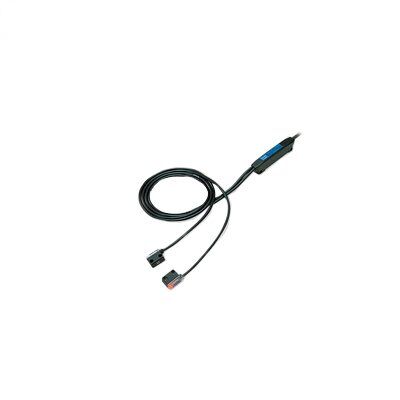

Keyence PQ-01 Thrubeam Short-Distance Sensor Main Unit
$ 60
Part No: PQ-01
-
Compact short-distance thrubeam sensor
-
Detects objects as small as 0.5 mm
-
Fast 1 ms response time
-
IP64 protection for industrial environments
Description
Keyence PQ-01 Thrubeam Short-Distance Sensor Main Unit
The Keyence PQ-01 is a short-distance thrubeam sensor designed for precise detection in compact spaces. Featuring an infrared LED light source and a detection range of 100 mm, it can detect objects as small as 0.5 mm in diameter. With IP64 protection and high vibration/shock resistance, this sensor ensures stable operation in demanding environments.
| Specification | Detail |
|---|---|
| Model | PQ-01 |
| Type | Thrubeam Short-detecting distance |
| Detecting Distance | 100 mm (3.94″) |
| Light Source | Infrared LED |
| Detectable Object | ≥ 1 mm (0.04″) diameter opaque materials |
| Minimum Detectable Object | 0.5 mm (0.02″) diameter copper wire |
| Response Time | ≤ 1 ms |
| Operation Mode | DARK-ON |
| Indicator Lamp | Output: Red LED |
| Control Output | NPN, 100 mA max (40 V max), Residual voltage ≤ 1 V |
| Protection Circuit | Reverse polarity, overcurrent, surge absorber |
| Power Voltage | 12–24 VDC ±10%, Ripple (P-P) ≤ 10% |
| Current Consumption | ≤ 30 mA |
| Enclosure Rating | IP64 |
| Ambient Light | Incandescent ≤ 3,000 lux; Sunlight ≤ 10,000 lux |
| Ambient Temperature | -20 to +55°C (-4 to 131°F) (No freezing) |
| Relative Humidity | 35–85% RH (No condensation) |
| Vibration Resistance | 10–55 Hz, Double amplitude 1.5 mm (0.06″), 2 hrs each axis |
| Shock Resistance | 500 m/s², 3 times each axis |
| Material | Amplifier: Polysulfone; Sensor head: Polyarylate |
| Weight | Approx. 48 g (including 2 m cable) |
