LABOM Pressure Gauge BH5200-A58 DA51310-A4001-L22
$ 1,590
BH5200-A58 DA51310-A4001-L22
-
DN 100 pressure gauge for hygienic applications
-
Designed for food, pharmaceutical, and biotechnology industries
-
IP65 stainless steel case with bottom connection
-
Nominal range 0…10 bar, overload protected (1.3x)
-
Diaphragm seal, flange-type, ASME B16.5 RF 125…250 AA
-
Wetted parts in stainless steel 316L (1.4404/1.4435)
-
System filling: FDA-compliant synthetic oil, silicon-free
-
Operating temperature -10…+140 °C
-
Zero-point correction with micro-adjustable pointer

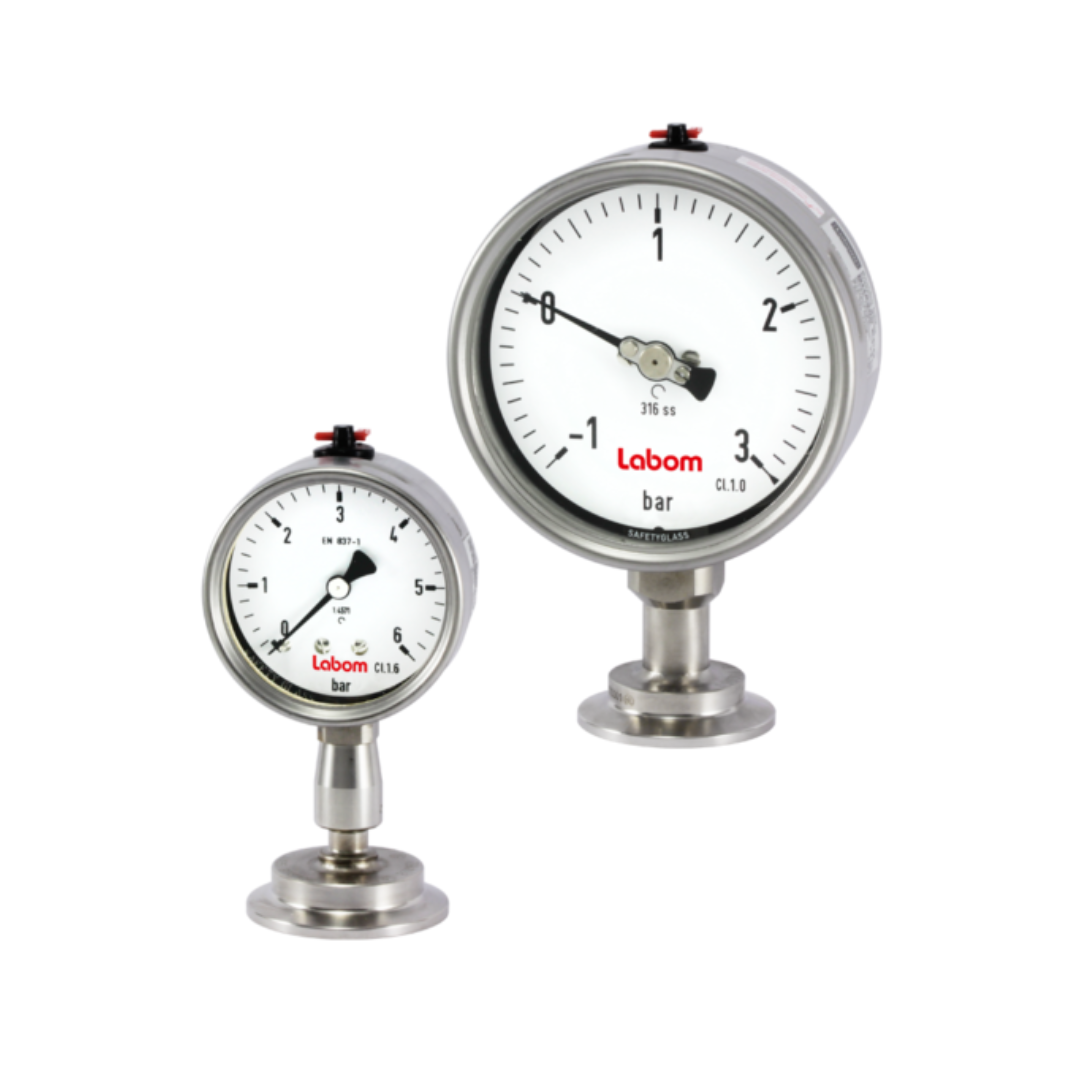

LABOM Pressure Gauge with Diaphragm Seal BH5200-A58 DA51310-A4001-L22
The LABOM pressure gauge DN 100 with diaphragm seal is specifically designed for demanding applications in the food, pharmaceutical, and biotechnology industries. Featuring a robust stainless steel construction, IP65 case design, and welded diaphragm seal with flange-type connection, it ensures reliable and hygienic pressure measurement. This model offers a nominal range of 0…10 bar with overload protection and a micro-adjustable pointer for zero-point correction. The system filling is FDA-compliant synthetic oil (FD1, silicon-free), ensuring safety and compatibility in hygienic processes.
| Specification | Details |
|---|---|
| Brand | LABOM |
| Product Type | Pressure Gauge with Diaphragm Seal |
| Part Number | BH5200-A58 DA51310-A4001-L22 |
| Nominal Size | DN 100 |
| Application | Food, Pharmaceutical, Biotechnology |
| Case Design | IP65, process connection bottom |
| Nominal Range | 0…10 bar |
| Overload Protection | 1.3 times |
| Pointer | With micro adjusting device for zero-point correction |
| Diaphragm Seal Type | Flange-type, general application |
| Flange Standard | ASME B16.5 RF 125…250 AA |
| Nominal Width | DN 2″ Class 150 |
| Instrument Connection | Directly welded |
| Wetted Parts Material | Stainless steel 1.4404/1.4435 (316L) |
| System Filling | Synthetic oil FD1, silicon-free, FDA 21 CFR 178.3570 / H1 registered |
| Operating Temperature | -10…+140 °C |
