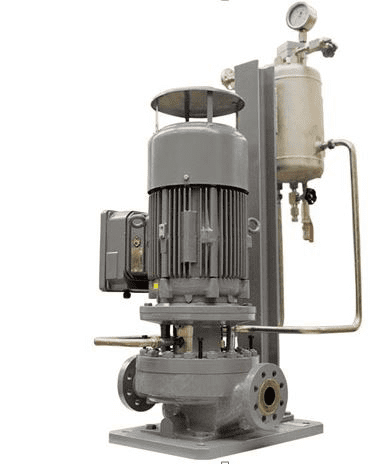

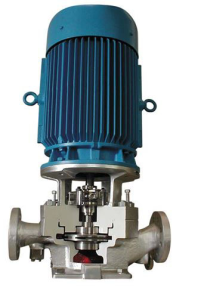

OBL941PD Vertical In-Line Centrifugal Pump Ocean Blast
$ 49,647
Part No: OBL941PD
OBL941PD Vertical In-Line Centrifugal Pump — Designed to API 610 OH5 standards with API 682 seal chamber, this single-stage, vertical in-line pump provides compact, high-performance fluid handling in oil & gas, chemical, and industrial systems with high-pressure and wide temperature tolerances.
Product Overview
The VI-LC is a vertical in-line process pump designed in compliance with the latest API 610 (OH5) standard, ensuring exceptional performance in demanding industrial applications. This radially split, volute-type, single-stage, single-suction centrifugal pump is engineered to handle high-pressure and high-temperature conditions, making it ideal for petrochemical, oil & gas, and industrial processing sectors globally.
Operating Limits
-
Capacity: Up to 550 m³/h (2,420 gpm)
-
Head: Up to 280 m (920 ft)
-
Maximum Pressure: Up to 40 bar (600 psi)
-
Temperature Range:
-
From -80 to 260 °C (-112 to 500 °F)
-
From -10 to 220 °C (14 to 428 °F)
-
Applications
The pump is ideally suited for industries that demand high performance in fluid handling and process applications, including:
-
Petroleum Refining: Ideal for various fluid transfer tasks in refinery operations
-
Oil & Gas Production and Distribution: Reliable for pumping crude oil, refined products, and natural gas liquids
-
Petrochemical Applications: Efficiently handles the demanding conditions of petrochemical processing
-
Chemical and Process Industries: Suitable for transferring chemicals and other fluids in diverse process environments
Key Features
| Feature | Description |
|---|---|
| Vertical In-Line Design | Saves space and simplifies installation, ideal for tight areas and easy access |
| Single-Suction Configuration | Provides efficient performance with low cavitation and reduced wear |
| API 610 Compliant (OH5 Type) | Built for industrial use, ensuring durability and high operational standards |
| API 682 Mechanical Seal Chamber | Delivers extended life and reduced maintenance via advanced sealing technology |
Core Features
-
Type: Radially split, vertical in-line centrifugal pump
-
Mounting: Foot-mounted for simple installation without a foundation
-
Casing Options: Available with single or double volute casings depending on size
-
Impeller: Closed, single-suction, dynamically balanced for optimal performance
-
Thrust Compensation: Via balance holes and wear rings on both front and rear impellers
-
Nozzle Arrangement: Side-to-side inline configuration to optimize space usage
Construction Materials
-
Built to meet API 610 material standards
-
Custom material options available for specialized applications
Design Advantages
-
Compliant with API 610 (OH5 type) for critical process reliability
-
Compact close-coupled design minimizes installation footprint
-
Replaceable wear rings on casing and impeller help extend life and preserve efficiency
-
Integrates easily into existing systems for seamless performance in complex operations
-
Offers robust, long-term reliability with minimal maintenance requirements
