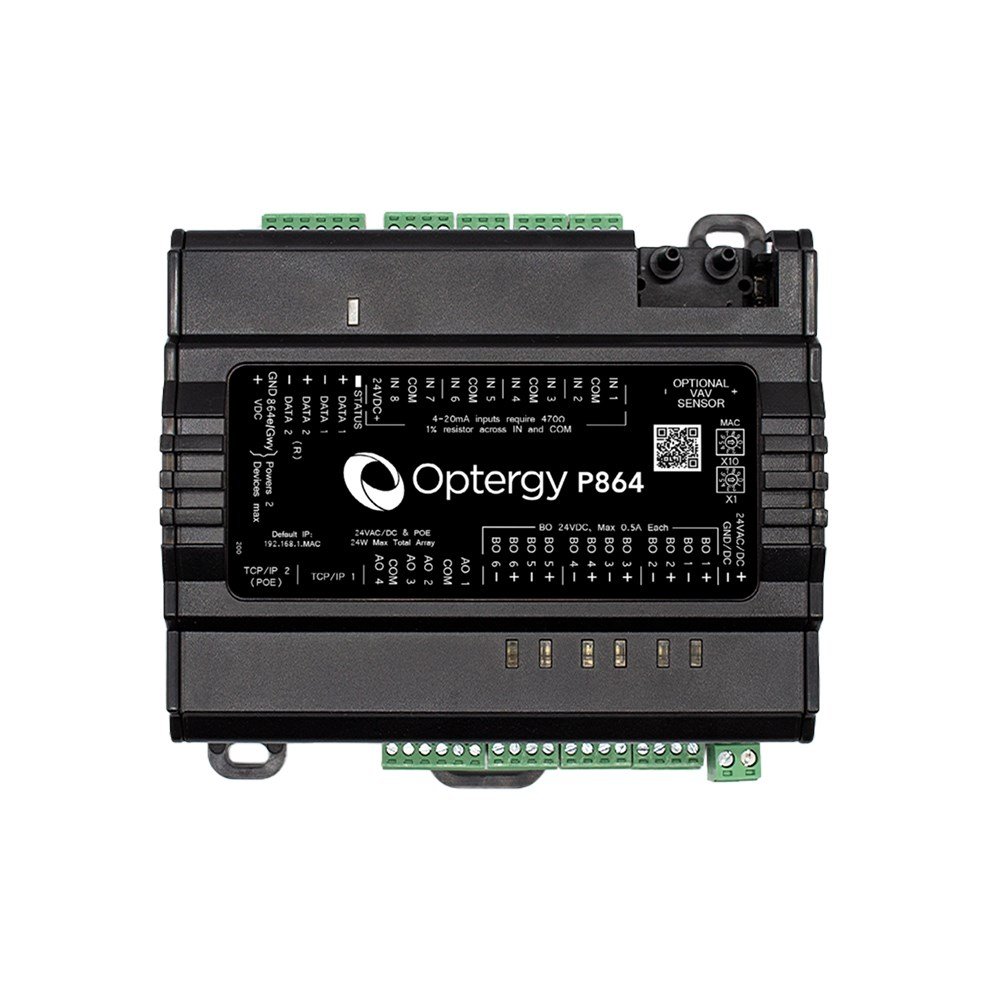

Optergy P864-AFS Edge Controller P864-AFS-V4
$ 445
Part No: P864-AFS-V4
The Optergy P864-AFS Edge Controller offers smart monitoring with advanced BACnet compatibility, factory-mounted airflow sensor, expandable I/O, and PoE+ support for flexible and efficient building control.
Description
P864-AFS Optergy Edge Controller, enabling smart building control with a factory-mounted airflow sensor for enhanced accuracy and performance.
P864-AFS
- Smart Building Monitoring and Control: Features web-based programming, REST API, and BACnet compatibility.
- Advanced Hardware: Includes 8 universal inputs, 6 binary outputs, and 4 analog outputs. Expandable up to 144 points.
- Seamless Integration: Compatible with IP networks, legacy BACnet systems, or standalone use.
Key Features
| General | Details |
|---|---|
| Web-based programming logic | Simplifies configuration with an intuitive interface. |
| Local web page configuration | Access through HTTPS for secure local setup. |
| Intellectual property safeguards | Protects sensitive data and ensures system integrity. |
| Built-in programming tools | Enables efficient custom control logic development. |
| REST API | Facilitates seamless integration with third-party applications. |
| User access permissions | Allows secure and customizable access levels. |
| BTL Certified | Recognized as a Building Advanced Application Controller (B-AAC). |
| Hardware | Details |
|---|---|
| Universal Inputs | Includes 8 inputs with 24-bit resolution for precise monitoring. |
| Binary Outputs | Provides 6 outputs for reliable binary control. |
| Analog Outputs | Features 4 outputs with 12-bit resolution for analog control. |
| Expandability | Supports up to 7 Optergy 864e modules, expanding to 144 points. |
| Airflow Sensor | Pre-installed for accurate airflow control at lower flow rates. |
| BACnet Features | Details |
|---|---|
| Trendlogs | Accommodates up to 150 trend logs for performance tracking. |
| Alarms | Manages 100 alarm points for comprehensive monitoring. |
| Schedules | Includes 10 schedules for optimized operations. |
| Calendars | Provides 10 calendar entries for event planning. |
| Notification Classes | Supports 10 notification classes for streamlined alerts. |
| Open Protocol Configuration Options | Details |
|---|---|
| BACnet IP | Offers daisy chain IP with 10/100 Mbps speed. |
| BACnet MS/TP | Supports baud rates from 9.6 to 115.2 kbps. |
| MS/TP Routing | Functions as a router from BACnet IP to MS/TP. |
| Modbus IP/485 Gateway | Ensures compatibility with Modbus systems. |
| Power Options | Operates via PoE+ (IEEE 802.3 AT), 24 VAC, or 24 VDC. |
