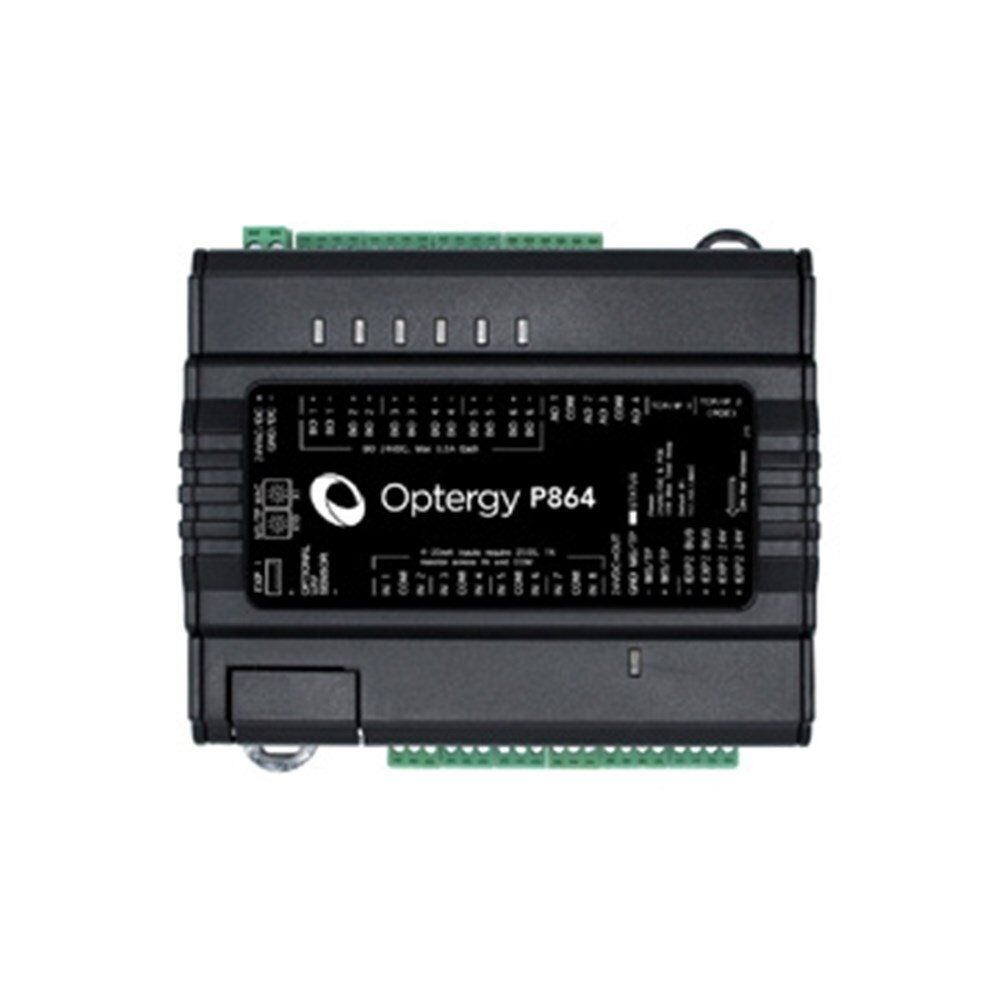

Optergy P864 Edge Controller P864-V4

$ 320

Part No: P864-V4
The Optergy P864 Edge Controller offers real-time processing, seamless integration with BACnet and REST API, and the flexibility to expand with optional modules, making it ideal for optimizing building performance.

Optergy P864 Edge Controller offers smart building control with real-time processing and flexibility to meet building needs.

P864-V4

Optimized Building Performance: Real-time processing with smart monitoring and control features.
Advanced Hardware: Includes 8 universal inputs, 6 binary outputs, and 4 analog outputs, expandable to 144 data points.
Seamless Integration: Compatible with BACnet IP, MS/TP, or REST API, and supports PoE for easier installation.

Key Features

General	Details
Web-based programming logic	Simplifies configuration with an intuitive interface.
Local web page configuration	Access through HTTPS for secure local setup.
Intellectual property safeguards	Protects sensitive data and ensures system integrity.
Built-in programming tools	Enables efficient custom control logic development.
REST API	Facilitates seamless integration with third-party applications.
User access permissions	Allows secure and customizable access levels.
BTL Certified	Recognized as a Building Advanced Application Controller (B-AAC).

Hardware	Details
Universal Inputs	Includes 8 inputs with 24-bit resolution for precise monitoring.
Binary Outputs	Provides 6 outputs for reliable binary control.
Analog Outputs	Features 4 outputs with 12-bit resolution for analog control.
Expandability	Supports up to 7 Optergy 864e modules, expanding to 144 points.
Optional Airflow Sensor	Additional airflow sensor (Optergy AFS-864) for enhanced control.

BACnet Features	Details
Trendlogs	Accommodates up to 150 trend logs for performance tracking.
Alarms	Manages 100 alarm points for comprehensive monitoring.
Schedules	Includes 10 schedules for optimized operations.
Calendars	Provides 10 calendar entries for event planning.
Notification Classes	Supports 10 notification classes for streamlined alerts.

Open Protocol Configuration Options	Details
BACnet IP	Offers daisy chain IP with 10/100 Mbps speed.
BACnet MS/TP	Supports baud rates from 9.6 to 115.2 kbps.
MS/TP Routing	Functions as a router from BACnet IP to MS/TP.
Modbus IP/485 Gateway	Ensures compatibility with Modbus systems.
Power Options	Operates via PoE+ (IEEE 802.3 AT), 24 VAC, or 24 VDC.
