Schneider Electric Lighting Control Panel with Magnetic Contactor LC1D115M7
$ 1,130
LC1D115M7
-
3P (3NO) contactor for motor control
-
AC-3 rated up to 115 A @ 440V
-
220 V AC coil with transient suppressor
-
Built-in auxiliary contacts: 1NO + 1NC
-
Multi-standard certified: IEC, UL, CSA, Marine
-
Compact design, reliable in harsh conditions
-
DIN rail or screw mounting support

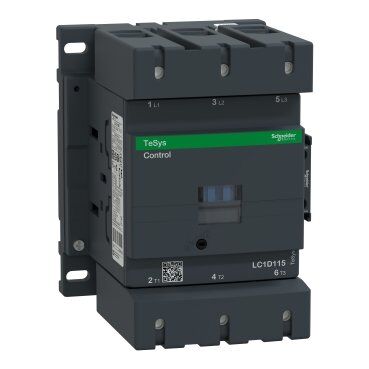

Schneider Electric Lighting Control Panel with Magnetic Contactor LC1D115M7
This Schneider Electric TeSys Deca contactor is a reliable and compact solution for motor control applications. With a 220V AC coil and a 3-pole configuration, it can handle up to 115A at 440V AC (AC-3 category), making it suitable for a wide range of industrial motor applications. The contactor includes built-in auxiliary contacts (1NO+1NC) and a transient suppressor module for efficient and safe operation. Its robust construction supports operation in demanding environments up to 60°C and 2400 cycles per hour. This unit is compliant with multiple global standards including IEC, UL, CSA, and Marine certifications, and fits easily on 2 DIN rails or screw mounts.
| Specification | Value |
|---|---|
| Brand | Schneider Electric |
| Series | TeSys Deca |
| Product Type | Lighting Control Panel with Contactor |
| Contactor Model | LC1D115M7 |
| Coil Voltage | 220 V AC, 50/60 Hz |
| Number of Poles | 3 (3NO) |
| Full Load Amps – Inductive | 115 A |
| Rated Operational Voltage | Up to 1000 V AC |
| Motor Power Rating (AC-3 @400V) | 55 kW |
| Control Circuit | AC, built-in diode suppressor |
| Electrical Durability | 0.95 million cycles (AC-3) |
| Mounting | DIN Rail / Panel Mounting |
| Dimensions (H x W x D) | 158 x 120 x 136 mm |
| Net Weight | 2.5 kg |
| Certifications | IEC, UL, CSA, CCC, EAC, Marine |
| Protection Class | IP20 |
| Ambient Operating Temp. | -40 to +60°C |
