Schneider Lighting Control Panel Main 160A/4P MCCB – LC1D25M7
$ 415
LC1D25M7
-
3P contactor for motors up to 11 kW (400V)
-
220V AC 50/60Hz control coil
-
Integrated 1NO+1NC auxiliary contacts
-
High mechanical and electrical durability
-
Conforms to global industrial standards
-
DIN-rail and screw mountable
-
RoHS & REACh compliant (Green Premium)
Schneider Lighting Control Panel Main 160A/4P MCCB – LC1D25M7
Part No: LC1D25M7

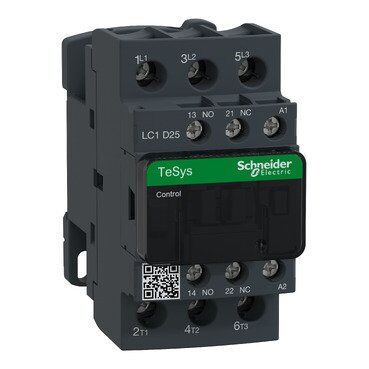

This Schneider Electric TeSys Deca LC1D contactor is engineered for reliable motor control and resistive load applications. Rated at 25 A for AC-3 utilization and supporting up to 11 kW at 400V, it features a 3-pole (3NO) configuration with built-in 1NO+1NC auxiliary contacts. Equipped with a 220V AC 50/60Hz coil and screw clamp terminals, this compact unit ensures dependable switching up to 3600 cycles/hour. With certifications across IEC, UL, CSA, CCC, EAC, and Marine standards, it is suitable for diverse industrial environments, delivering optimal performance even up to 70°C. RoHS and REACh-compliant.
| Specification | Value |
|---|---|
| Brand | Schneider Electric |
| Range | TeSys Deca |
| Type | Contactor |
| Application | Motor control, resistive load |
| Number of Poles | 3P (3 NO) |
| Coil Voltage | 220V AC, 50/60 Hz |
| Rated Operational Voltage (Ue) | ≤ 690V AC / ≤ 300V DC |
| Rated Current (Ie) | 25 A (AC-3), 40 A (AC-1) |
| Motor Power | Up to 15 kW (AC-3), 20 hp (3-phase) |
| Mounting | DIN rail or screw fixing |
| Auxiliary Contacts | 1 NO + 1 NC (mechanically linked, mirror contact) |
| Certifications | UL, CSA, CCC, EAC, Marine, Green Premium |
| Protection Rating | IP20 (front) |
| Mechanical Durability | 15 million cycles |
| Electrical Durability | 1.65 million cycles (AC-3) |
| Ambient Temperature Range | -40 to +70°C |
| Dimensions (H x W x D) | 85 mm x 45 mm x 92 mm |
| Net Weight | 0.37 kg |
