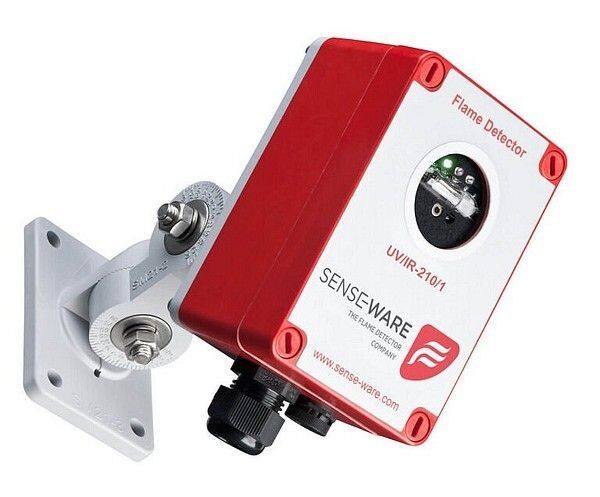

Sense-Ware UV/IR Flame Detector SW1105
$ 2,200
SW1105
-
Dual-spectrum UV/IR flame detector with high false alarm immunity
-
Designed for hazardous areas (ATEX II 3G/3D)
-
Sensitive to hydrogen and hydrocarbon-based fires
-
Fixed sensitivity, manual latch alarm
-
Relay outputs for alarm and fault signals
-
GRP red housing, IP-rated enclosure
-
Operates in wide temperature range: -40°C to +70°C
-
Includes automatic hourly self-test and test lamp support
The Sense-Ware UV/IR-210/1CZ flame detector (P/N: SW1105) is a high-performance combination flame detection unit that integrates both ultraviolet (UV) and infrared (IR) sensors with advanced microprocessor-based signal analysis. Its dual-spectrum sensing enhances reliability by requiring both UV and IR thresholds to be exceeded before triggering an alarm, thereby reducing false alarms that often affect single-spectrum detectors.
The infrared sensor includes flicker frequency analysis to improve flame recognition accuracy. It is ATEX-certified for use in hazardous areas (II 3G EX nA IIC T4 GC / II 3D EX tc IIIC T71°C Dc), with a durable red GRP housing and fixed sensitivity setting. Its robust construction and sophisticated sensing logic make it ideal for hazardous environments including hydrogen detection applications. A built-in hourly self-test ensures continuous functionality, and a test lamp can be used for scheduled inspections.
This model includes manual latch alarm, relay outputs for alarm and fault, and operates within a wide temperature range. It is CPR-EN54-10 certified and compatible with the SM21 mounting bracket (Accessory Part No: 2401228).
Specifications
| Parameter | Description | |
|---|---|---|
| Model | UV/IR-210/1CZ | |
| Part Number | SW1105 | |
| Detection Type | Dual (Ultraviolet and Infrared) | |
| Power Supply | 10–28 VDC | |
| Alarm Activation | Both UV and IR must trigger; flicker frequency analyzed | |
| Sensitivity Setting | Fixed | |
| Alarm Delay | 4–8 seconds (dynamic) | |
| Alarm Output | Relay | |
| Fault Output | Relay | |
| Housing | GRP, red color | |
| Temperature Range | -40°C to +70°C (Safe Areas only) | |
| Self-Test | Hourly automatic sensor test | |
| Certifications | ATEX II 3G / 3D, CPR-EN54-10 | |
| Application | Hydrogen and hydrocarbon flame detection | |
| Special Features |
|
|
