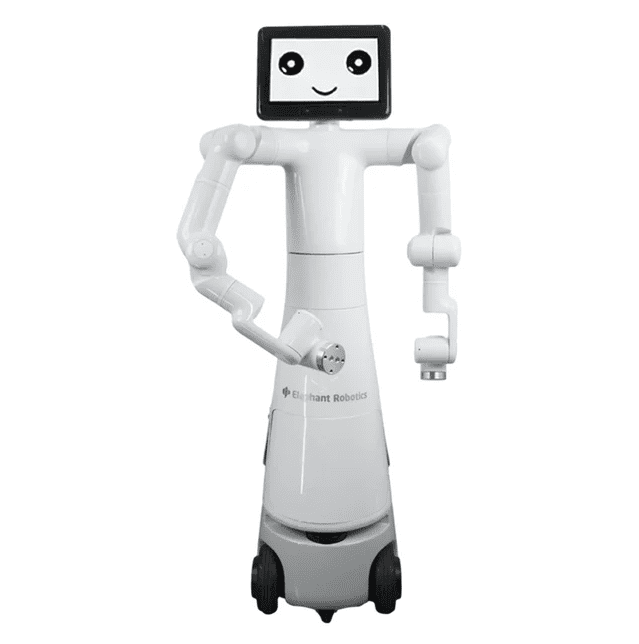

Shenzhen Elephant Robotics Mercury B1
$ 13,130
Part No: Mercury B1
-
Dual 7-axis robotic arms (17 DOF) operating independently or cooperatively
-
9-inch multi-touch screen head with customizable expressions
-
Powered by high-performance NVIDIA Jetson Xavier (67 TOPS) with integrated 3D vision and voice interaction
-
Supports ROS, Python, C++, myPanel, myBlockly, and ChatGPT integration
Description
Shenzhen Elephant Robotics Mercury B1
The Mercury B1 is a semi-humanoid dual-arm robot from Shenzhen Elephant Robotics, ideal for advanced research, education, and AI interaction. Equipped with two 7-axis arms, high-performance AI control, and machine vision, it delivers fluid motion and intelligent multi-modal interaction.
| Product Size | 200 × 192.5 × 537 mm |
|---|---|
| Working Voltage | 24 V |
| Degree of Freedom | 17 DOF |
| Maximum Working Radius | 450 mm |
| Maximum Payload | 1 kg |
| Net Weight | 8 kg |
| Repeatability | ± 0.05 mm |
| Reduction Mechanism | Harmonic Reducer |
| Joint Brake | Electromagnetic friction plate |
| Main Controller CPU | 6-Core Arm v8.2 64-bit |
| Main Controller GPU | 384-Core Volta GPU |
| Computing Power | 67 TOPS |
| Screen | 9-inch Touch Screen |
| Material | Carbon fiber, Aluminum alloy, Engineering plastics |
| 3D Camera | Orbbec Deeyea |
| Microphone | Line array (4 microphones, 5 m, 180° pickup) |
| IO | 24 V – 6 Input, 6 Output |
| Communication | CAN Bus / Wi-Fi / LAN / Bluetooth / USB serial port |
| Part Number | Mercury B1 |
