SUMITOMO SFC Series Cooling Fan Gearbox SFC075R2GS-RRF-16
$ 103,700
Lead Time
18 weeks
Ex-Works
USA
Shipping
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.
Key Features
-
Heavy-duty helical-bevel gearbox designed specifically for cooling-fan assemblies.
-
Gear reduction ratio of 15.844 — lowers high input RPM to optimal fan operating speed.
-
Power handling up to 230 kW at 1785 RPM input ensures high torque output for demanding fan loads.
-
Rugged construction and high torque capacity provide long service life and reliability under continuous operation.
-
Designed for easy integration into industrial ventilation, HVAC, and process-cooling systems, with standard mounting provisions.
SUMITOMO Cooling Fan Gearbox SFC075R2GS-RRF-16
This cooling-fan gearbox from SUMITOMO is engineered for heavy-duty industrial applications requiring reliable speed reduction and torque transmission. Designed as a cooling fan assembly reducer, this unit facilitates efficient power transmission at high input speeds, converting them into a stable, reduced output speed while delivering robust torque — ideal for large industrial fans, ventilation systems, or other equipment needing controlled low-speed rotation with high load capacity.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | SUMITOMO |
| Product Type | Cooling Fan Gearbox / Speed Reducer |
| Part Number | SFC075R2GS-RRF-16 |
| Series | SFC |
| Function | Speed reduction and torque conversion for cooling-fan applications |
| Application | Industrial cooling fans, ventilation fans, large HVAC fans, industrial ventilation systems |
| Compatibility | Suitable for 230 kW, 1785 RPM fan motors or similar drive systems |

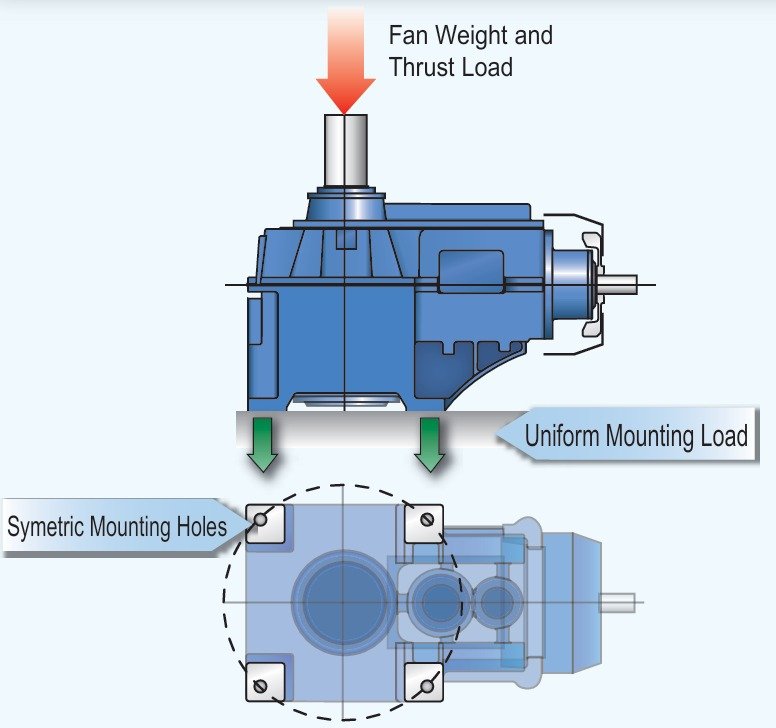

| Mounting | Flange or foot-mounted gearbox assembly (mounting provisions per SUMITOMO standard) |
Sumitomo SFC075R2GS-RRF-16 cooling fan gearbox unit
