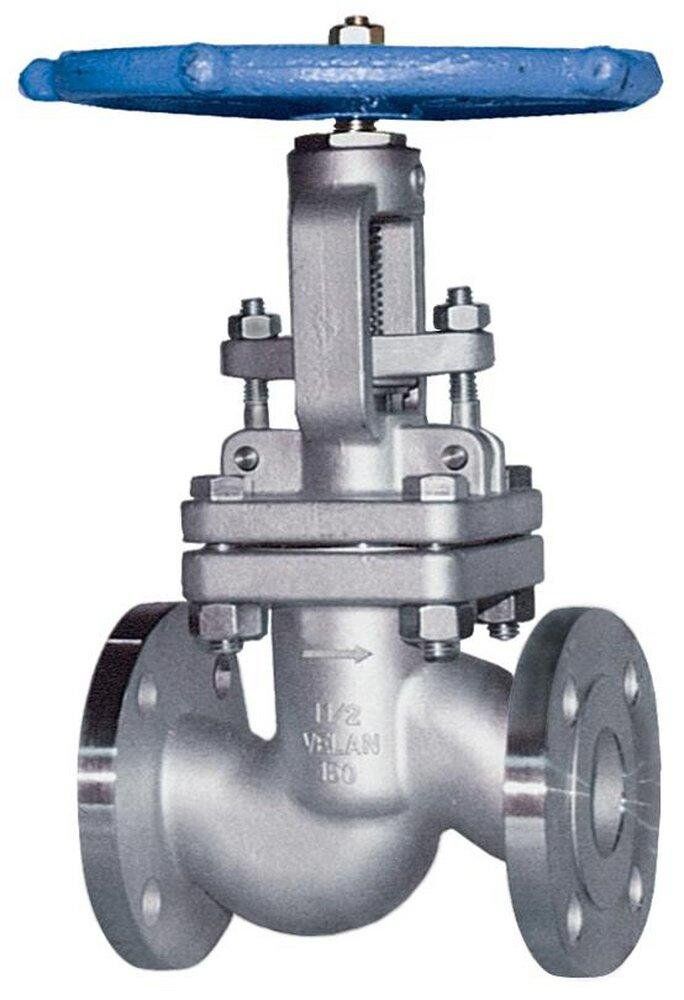

Velan 4″ 150# Globe Valve F12-0074C-02TY Carbon Steel Trim 8 RF Flanged
$ 1,425
Velan 4″ 150# Globe Valve F12-0074C-02TY Carbon Steel
Trim 8, RF flanged, bolted bonnet globe valve with API 622/624 packing and Stellite seats. Built to ASME/API specs.
Velan 4″ 150# Globe Valve F12-0074C-02TY
The Velan F12-0074C-02TY is a high-performance 4-inch 150# Globe Valve designed with a WCB carbon steel body, Trim 8, and RF flanged ends for effective flow regulation. It features a bolted bonnet, GRF API 622/624 low-emission packing, and a handwheel-operated non-rotating stem, ensuring minimal torque operation and reliable sealing. The valve includes seal-welded, Stellite 6 hardfaced seat rings for leakproof performance and long service life. Built to comply with stringent ASME and API standards, this valve is ideal for industrial flow control applications.
| Specification | Detail |
|---|---|
| Manufacturer | Velan |
| Model / Part Number | F12-0074C-02TY |
| Valve Type | Globe Valve |
| Size | 4 inch |
| Pressure Class | 150# |
| Body Material | ASTM A216 WCB (Carbon Steel) |
| Trim | Trim 8 (CR13 Disc and Stem) |
| Bonnet Type | Bolted |
| Connection Type | RF Flanged (ASME B16.5) |
| End Standards | ASME B16.10, B16.25, B16.34 |
| Port | Standard Port |
| Packing | API 622 / API 624 GRF Low Emission Packing |
| Disc Material | CR 13 |
| Seat Material | CoCr Alloy (Stellite 6 hardfaced) |
| Stem Type | Outside Screw & Yoke (OS&Y), Non-Rotating Stem |
| Handle Type | Handwheel |
| Handle Length | 14 inches |
| Valve Length | 11.5 inches |
| Certifications | API 623, API 8 |
| Design Features | Low emission design ≤ 50 ppm, long service life |
