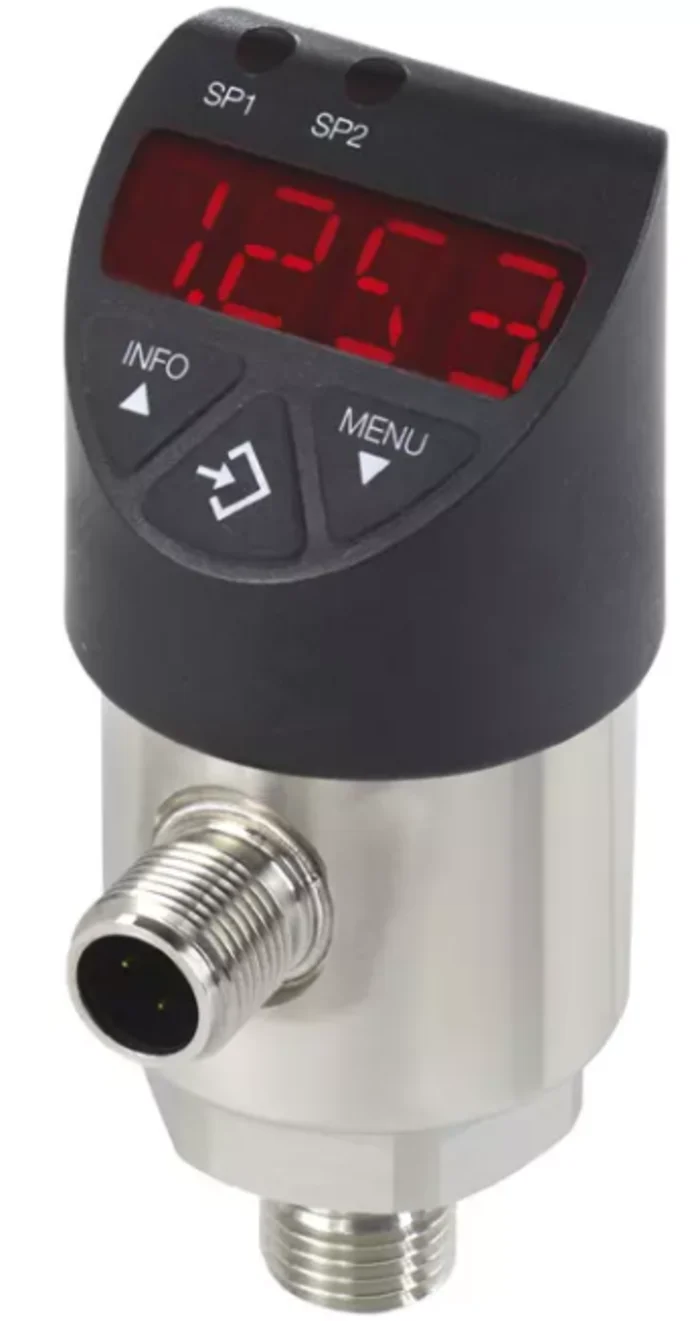

WIKA PSD-4 Pressure Switch 14321357
$ 657
WIKA PSD-4 Pressure Switch 14321357
-
Advanced condition monitoring via IO-Link
-
Higher flexibility, lower inventory
-
Easy integration combined with good readability
-
Fast parameterisation via 3-buttons
-
Accuracy < ±0.5% with minimal long-term drift
-
Dual switching outputs (PNP/NPN) and scalable analogue output
-
Large 14-segment display with red digits for high visibility
-
Display rotation (180°) and housing rotation (> 300°) for flexible installation
WIKA PSD-4 Pressure Switch 14321357
The WIKA PSD-4 electronic pressure switch is a versatile, high-accuracy solution for industrial automation, hygienic applications, and harsh environments. With an accuracy of < ±0.5% and minimal long-term drift, it delivers precise process pressure readings for over 100 million load cycles. Available with a digital output signal, switchable and scalable analogue output, and advanced condition monitoring capabilities, the PSD-4 offers exceptional flexibility and performance. Its robust design ensures reliable operation, while the large, easy-to-read display supports intuitive operation and fast setup.
| Specification | Details |
|---|---|
| Model | PSD-4 |
| Part Number | 14321357 |
| Pressure Range | 0 … 10 bar gauge |
| Switching Outputs | Two (PNP/NPN) |
| IO-Link | Without |
| Process Connection | G 1/2 A DIN EN ISO 1179-2 (DIN 3852-E) |
| Sealing | NBR |
| Electrical Connection | M12x1 circular connector (4-pin) |
| Pin Assignment | U+=1, U-=3, SP1=4, SP2=2 |
| Accuracy | < ±0.5% |
| Load Cycle Life | > 100 million cycles |
| Media Temperature | Not specified |
| Approvals | cULus |
| Documentation | Supplied with test protocol |
Applications
-
Machine tools
-
Hydraulics and pneumatics
-
Special machine building
-
Food and pharmaceutical industry
