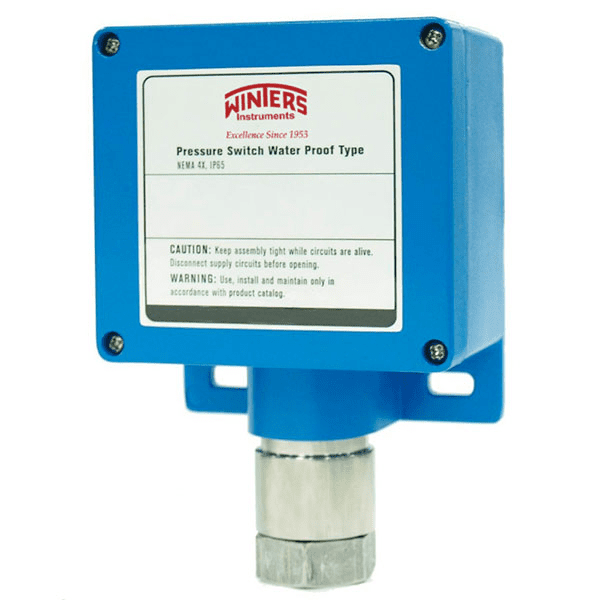

2WPS GENERAL PURPOSE AND ADJUSTABLE DEAD BAND PRESSURE SWITCH 2WPS0306F2F201 WinSMART™

$1,561.00

Part No: 2WPS0306F2F201
2WPS GENERAL PURPOSE AND ADJUSTABLE DEAD BAND PRESSURE SWITCH
This 2WPS0306F2F201 pressure switch operates within a pressure range of 50 to 300 PSI. With ±1% accuracy and a robust die-cast aluminum housing, it is suitable for industrial applications like pump and compressor monitoring. The switch offers both fixed and adjustable deadband options for flexible operation.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description



2WPS, AL + SS WELDED, 50-300 PSI SPDT FIXED, 1/2″ & 1/2″ NPT F, 1%

Feature Details
Housing Material Heavy-duty die-cast aluminum, blue color
Accuracy +/- 1% of the adjustable set-point range
Pressure Connection Female 1/4” or 1/2” NPT, BSP, M20xP1.5
Electrical Connection Female 1/2” or 3/4” NPT, M20xP1.5
Wetted Parts 16 Stainless Steel welded
Set Point Adjustment Field selectable
Deadband Fixed or Adjustable
Contact Rating Fixed Deadband: 15A @ 125/250VAC; 0.4A @ 125VDC; 3A @ 30VDC; Gold contact microswitch
Adjustable Deadband: 20A @ 125/250/480VAC; 5A @ 125VDC
Number of Contacts 1 x SPDT or 2 x SPDT (only 1 x SPDT for Adjustable Deadband range)
Ambient/Process Temperature -30 to 205 °C (-22 to 400 °F)
Enclosure Rating NEMA 4 & 4X, IP66
Protection Rating Protection against liquid and solid ingress
Approvals RU recognized (switch only) file #E12252, CRN registration pending
Weight 3.4 lbs (1.54 kg)
