3/4 STRAIGHT UNION MP CONE AND THREAD 20UFX12 PARKER
$ 384
Part No: 20UFX12

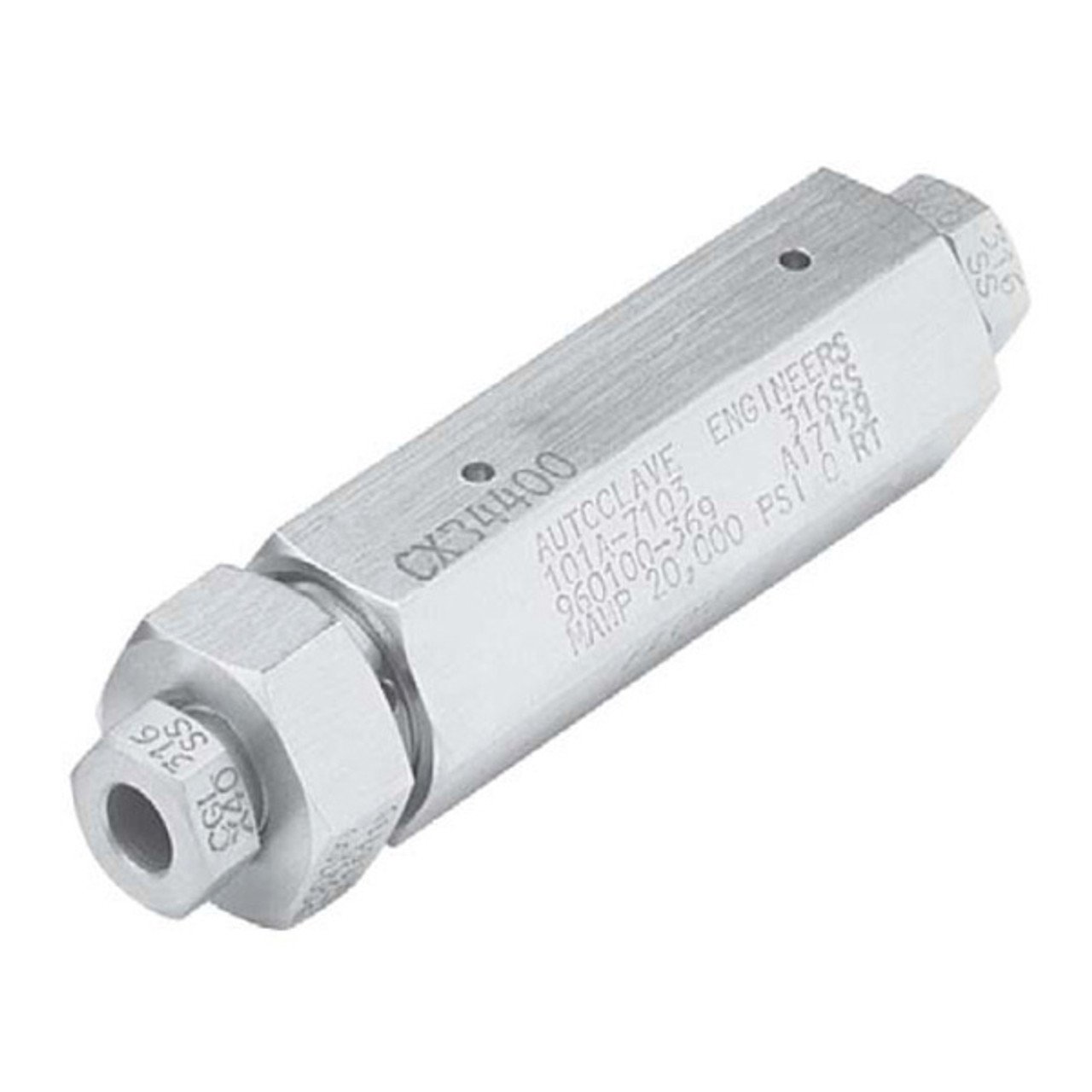

3/4 Straight Union MP Cone and Thread Parker
High-pressure straight union with SF750CX cone and thread connections, supporting 20,000 psi applications. Built for durability and precision in demanding environments.
Description
3/4 STRAIGHT UNION MP CONE AND THREAD 20UFX12 PARKER
Specifications:
| Feature | Details |
|---|---|
| Part Number | 20UFX12 |
| Brand | Parker |
| Connection Type | SF750CX |
| Outside Diameter Tube | 19.05 mm (3/4 in) |
| Pressure Rating | 20,000 psi (1378.93 bar) |
| Minimum Opening | 0.516 in (13.11 mm) |
| A – Typical Hex | 1.38 in (35.05 mm) |
| B – Width | 2.50 in (63.50 mm) |
| C – Length | 0.62 in (15.75 mm) |
| D – Typical Hex | 1.19 in (30.23 mm) |
| Tubing Engagement Depth | 1.00 in (25.4 mm) |
