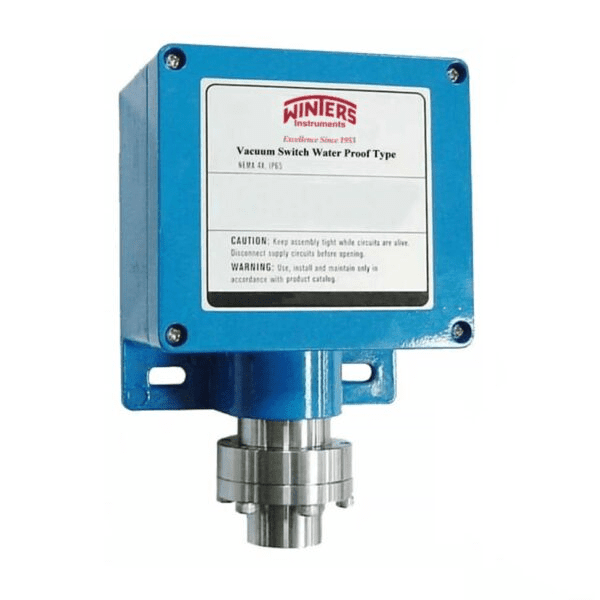

3WPS VACUUM AND LOW PRESSURE SWITCH 3WPS0106F4F201 WinSMART™

$2,005.00

Part No: 3WPS0106F4F201
3WPS VACUUM AND LOW PRESSURE SWITCH
The 3WPS0106F4F201 is designed for low pressure applications, with a range of 0.4-2.8 PSI. Offering 1% accuracy and fixed deadband, it features a durable die-cast aluminum housing with welded stainless steel wetted parts. This switch is NEMA 4 & 4X, IP66 rated, and ideal for industrial and HVAC systems. Its field-selectable set point and compatibility with 1 x SPDT or 2 x SPDT contacts provide versatility and reliability in harsh environments.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

3WPS, AL + SS WELDED, 0.4-2.8 PSI SPDT FIXED, 1/2″ & 1/4″ NPT M, 1%

Feature Details
Housing Material Heavy-duty die-cast aluminum, blue color
Accuracy +/- 1% of the adjustable set-point range
Pressure Connection 1/2” NPT, BSP, M20xP1.5
Electrical Connection Female 1/2” or 3/4” NPT, M20xP1.5
Wetted Parts 316 Stainless Steel welded (except for Vacuum range, Viton o-ring)
Set Point Adjustment Field selectable
Deadband Fixed
Contact Rating 15A @ 125/250VAC; 0.4A @ 125VDC; 3A @ 30VDC
Number of Contacts 1 x SPDT or 2 x SPDT
Ambient/Process Temperature -30 to 205 °C (-22 to 400 °F), Vacuum range: -5 to 150 °C (23 to 300 °F)
Enclosure Rating NEMA 4 & 4X, IP66
Protection Rating Protection against liquid and solid ingress
Approvals RU recognized (switch only), file #E12252; CRN registration pending
Weight 3.35 lbs (1.52 kg)
