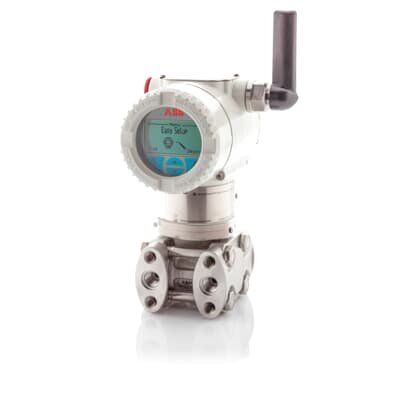

ABB 266DSH High Performance Differential Pressure Transmitter 266DSH.E.S.S.B.2.B.1‑V2.E1.L1.C1.H3
$ 3,400Each
Lead Time : 4 Weeks
Ex-Works : USA
Key Features
-
Ultra‑high differential pressure accuracy (±0.06 %) for precise process monitoring
-
Durable AISI 316L stainless steel wetted components with silicone oil fill for corrosion resistance
-
Advanced 4–20 mA output with HART digital communication for integration and diagnostics
-
Built‑in LCD with keypad simplifies configuration and real‑time readings
-
Certified for hazardous areas with calibration and material traceability documentation provided
ABB 266DSH High Performance Differential Pressure Transmitter 266DSH.E.S.S.B.2.B.1‑V2.E1.L1.C1.H3
The ABB 266DSH is a high‑performance differential pressure transmitter engineered for precise measurement of differential pressures in industrial processes. With base accuracy of ±0.06 %, rugged construction, advanced output, and integral display, it is ideal for process control, flow measurement, level measurement, and pressure monitoring across chemical, power, HVAC, and manufacturing sectors. Designed to withstand harsh process conditions and hazardous environments, the unit features HART communication, robust wetted materials, and compliant safety certifications for reliable long‑term performance in critical applications.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Product Type | Differential Pressure Transmitter |
| Part Number | 266DSH.E.S.S.B.2.B.1‑V2.E1.L1.C1.H3 |
| Function | Differential pressure measurement |
| Application | Process control, flow/level monitoring, industrial pressure systems |
| Span Limits / Base Accuracy | E: 0.54 to 16 kPa / ±0.06 % |
| Maximum Working Pressure | Standard static pressure range |
| Diaphragm Material / Fill Fluid | AISI 316L SS / Silicone oil (NACE compliant) |
| Process Connection | AISI 316L SS / 1/2 in.‑14 NPT female through adapter (horizontal) |
| Bolts / Gasket Material | AISI 316 SS / PTFE |
| Housing / Electrical Connection | Aluminium alloy (barrel) / M20 x 1.5 (CM20) |
| Output | 4–20 mA with HART – advanced functionality |
| Vent & Drain Valve Material | AISI 316L SS (on flange side top) |
| Integral Display | Digital LCD with integrated keypad |
| Hazardous Area Certification | ATEX Intrinsic Safety Ex ia |
| Certificates | EN 10204‑3.1 calibration certificate (9‑point) |
| Material Traceability | EN 10204‑3.1 process‑wetted parts |
| Mounting | Pipe/wall mount capable |
| Compatibility | Process control systems, PLC/DCS via HART |
