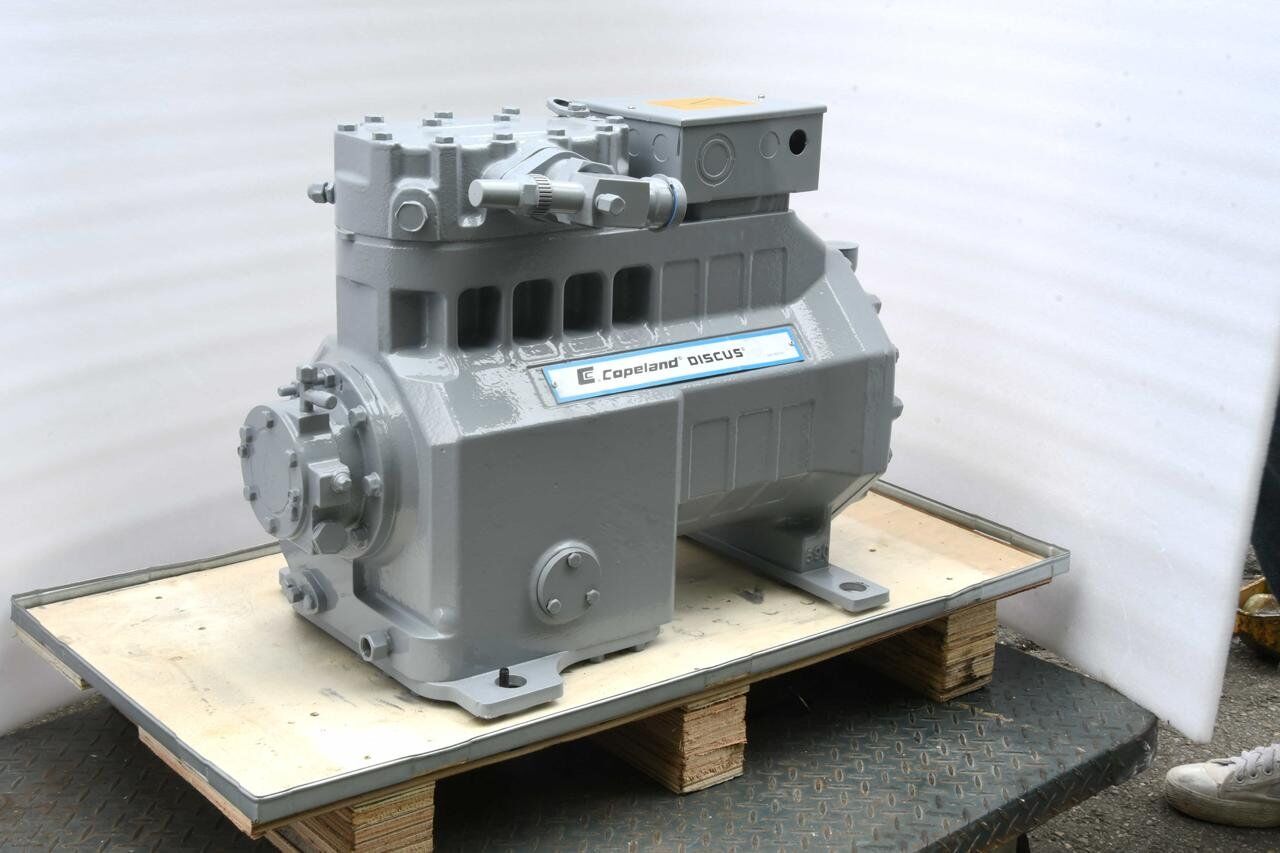

Copeland Compressor D3DC5-100X-AWM

$3,499.00

The Copeland D3DC5-100X-AWM is a 10 HP semi-hermetic piston compressor from the Discus Series, featuring a compact design (680 mm x 370 mm x 480 mm) and a displacement of 38 m³/h. Weighing 175 kg, it includes a 3-cylinder configuration and requires a 415 V power supply. Ideal for efficient cooling applications.

Add to Wishlist
Add to Wishlist
Trust Badge Image

Description

Model Number: D3DC5-100X-AWM
Product Range: Discus Series

  • Dimensions:
    • Length: 680 mm
    • Width: 370 mm
    • Height: 480 mm
    • Bolt Hole Size: 381 x 305 mm
  • Connections:
    • Discharge Size: 1 1/8″
    • Suction Size: 1 3/8″
  • Specifications:
    • Weight: 175 kg
    • Compressor Displacement: 38 m³/h
    • Number of Cylinders: 3
    • Oil Charge: 3.7 L
    • Horse Power: 10 HP
  • Electrical:
    • Locked Rotor Current: 121 A
    • Max Operating Current: 20.5 A
    • Power Supply: 415 V, 3-phase
