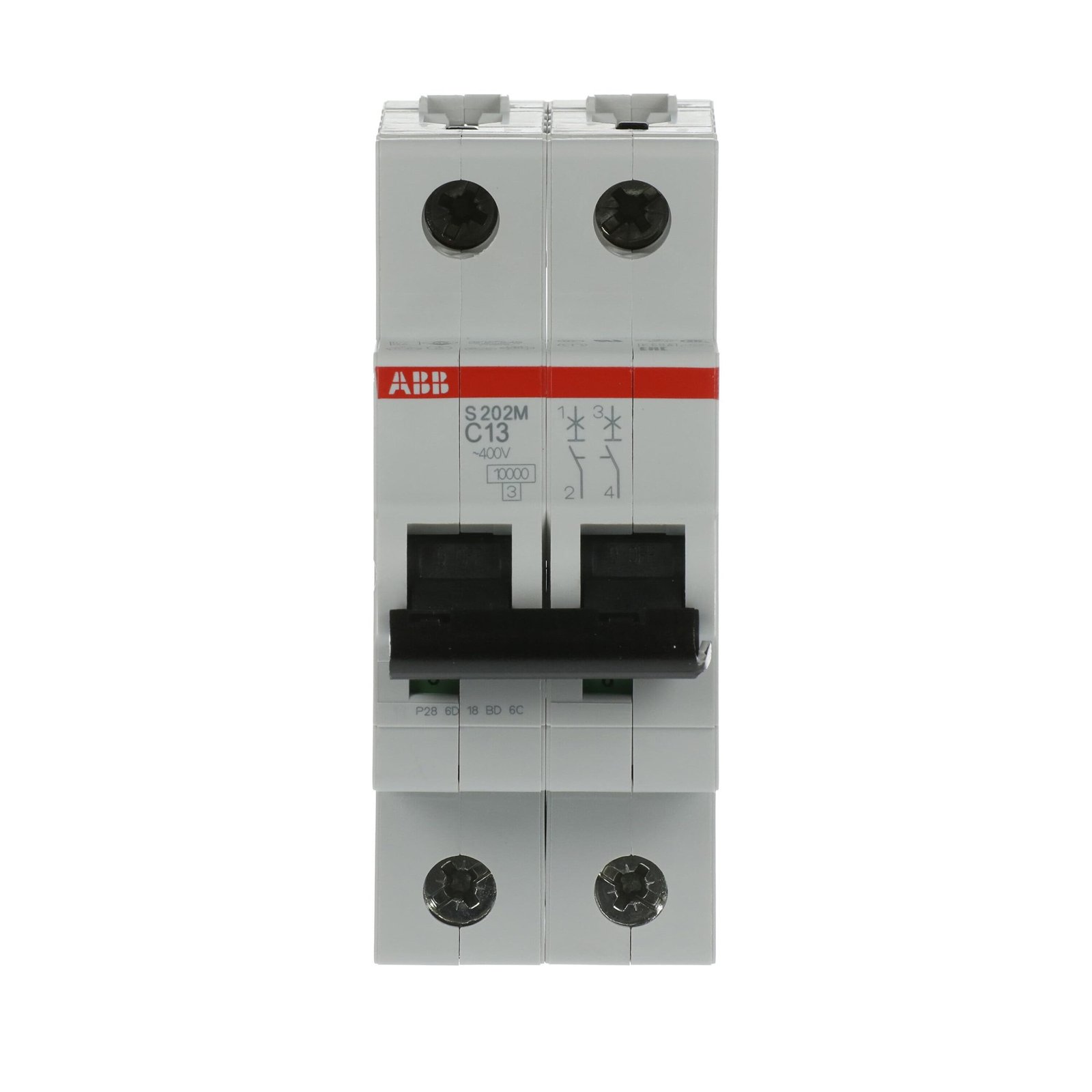

ABB Miniature Circuit Breaker S202M-C13 2CDS272001R0134
$ 425
Part No: 2CDS272001R0134
-
2-pole MCB with 13 A rating and C-curve tripping
-
10 kA breaking capacity with reliable overload and short circuit protection
-
Screw terminal with high mechanical endurance
-
Suitable for industrial, residential, and commercial use
Description
ABB Miniature Circuit Breaker S202M-C13 2CDS272001R0134
The ABB S202M-C13 is a 2-pole miniature circuit breaker from the System pro M compact S200M series, designed for reliable protection against overloads and short circuits. With a breaking capacity of 10 kA and a Type C tripping curve, it is suitable for industrial, commercial, and residential installations requiring precise and robust circuit protection.
| Model | S202M-C13 |
|---|---|
| Part Number | 2CDS272001R0134 |
| Rated Current | 13 A |
| Number of Poles | 2P |
| Tripping Characteristic | Type C |
| Rated Operational Voltage | 400 V AC (IEC 60898-1), 440 V AC (IEC 60947-2) |
| Breaking Capacity | 10 kA (AC), 25 kA (230 V), 15 kA (400 V) |
| Thermal Protection | Delayed thermal tripping mechanism |
| Short-Circuit Protection | Electromechanic tripping mechanism |
| Mounting Type | DIN rail (TH35) |
| Connection Type | Screw terminals, bi-directional cylinder-lift |
| Tightening Torque | 2.8 N·m |
| Terminal Capacity | 0.75–35 mm² (rigid/stranded) |
| Energy Limiting Class | 3 |
| Endurance | 20,000 cycles (electrical & mechanical) |
| IP Rating | IP20 (device only), IP40 (in enclosure) |
| Dimensions | 88 mm H × 35 mm W × 69 mm D |
| Housing Material | RAL 7035, Insulation Group II |
| Certifications | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA |
| Ambient Temperature | -25 °C to +55 °C (operation), -40 °C to +70 °C (storage) |
