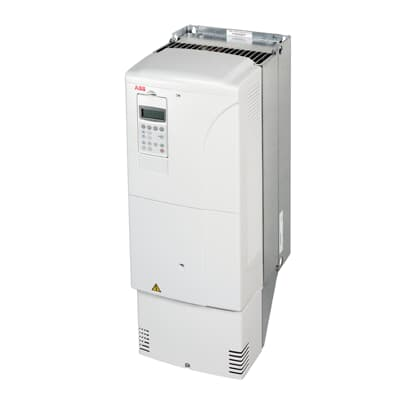

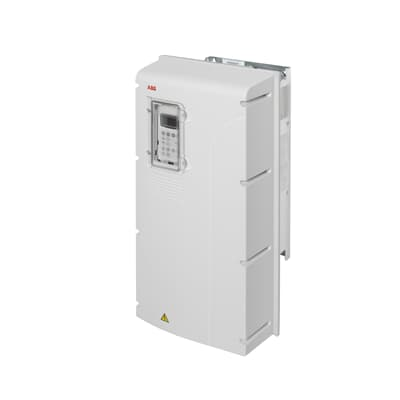

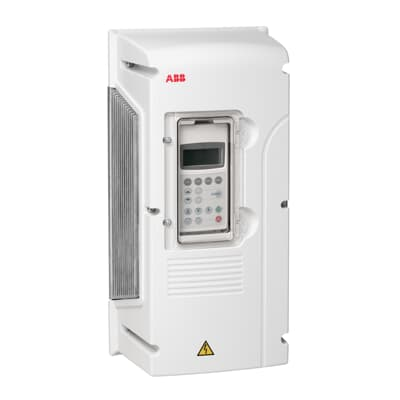

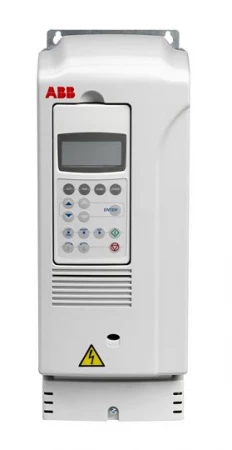

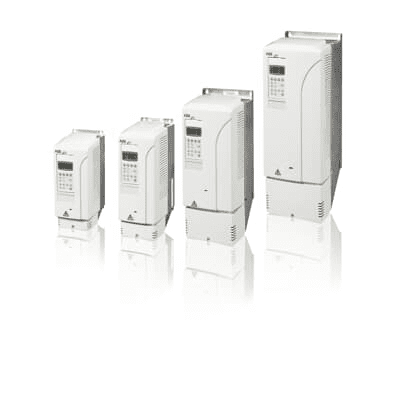

ACS800-01-0020-3 Frequency Converter ACS800-01-0020-3 +E202 +L503

$4,613.00

Part No: ACS800-01-0020-3
Frequency Converter ACS800-01-0020-3 +E202 +L503 with 15 kW max power, 34 A max current, 380-415 V input voltage, and wall-mountable. Features high efficiency (IE2) and suitable for normal, light overload, and heavy-duty applications. Weighs 15.78 kg and includes a 1-month lead time.

Add to Wishlist
Add to Wishlist
Trust Badge Image

Description



Feature Details
Part Number ACS800-01-0020-3
Product Name Frequency Converter ACS800-01-0020-3 +E202 +L503
Max Continuous Power (Pcont.) 15 kW
Max Continuous Current (Icont.) 34 A
Input Voltage 380-415 V
Frequency 50/60 Hz
Output Power (Normal Use) 15 kW
Output Current (Normal Use) 34 A
Output Power (Light Overload Use) 15 kW
Output Current (Light Overload Use) 31 A
Output Power (Heavy-duty Use) 11 kW
Output Current (Heavy-duty Use) 23 A
Apparent Output Power 24 kV·A
Efficiency IE2
Standby Loss 41 W
Operating Temperature Max 50 °C
Frame Size R3
Mounting Type Wall-mounting
Weight 15.78 kg
Dimensions (L x W x H) 265 mm x 173 mm x 471 mm
Product Family Steuersysteme & SPS
Export Regulations Yes
Country of Origin Finland (FI)
Customs Tariff Code 85044088
EAN 6410038780203
Classification UNSPSC: 26101751, 39122001
SCIP Number 9137de42-9806-4708-a144-33d9e4e244e2
Environmental Category RAEE: 5. Small equipment (no external dimension exceeding 50 cm)
Invoice Description ACS800-01-0020-3 Pcont.max:15kW, Icont.max:34A
Lead Time 1 month
Minimum Order Quantity 1 piece
Packaging Unit 1 carton
