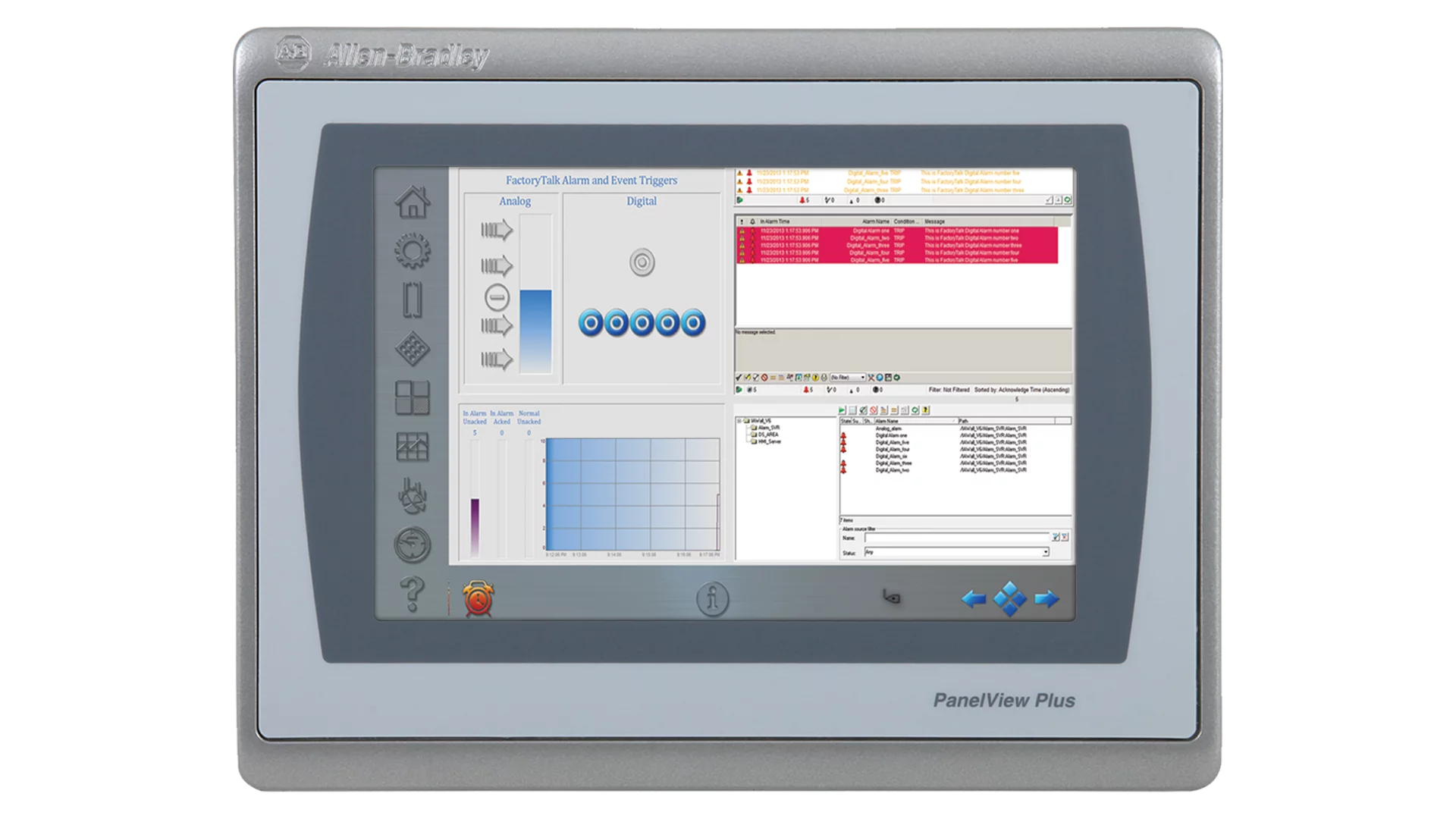

The Allen-Bradley 2711P-T10C22D9P PanelView 1000 is a high-performance operator interface terminal designed for industrial control systems. It provides intuitive graphical visualization, real-time monitoring, and seamless interaction with PLCs, making it ideal for process control, machinery operation, and factory automation environments.

Specifications

Specification	Details
Manufacturer	Allen-Bradley
Product Type	Graphic Operator Interface / HMI
Part Number	2711P-T10C22D9P
Function	Operator interface, process visualization, and control
Application	Industrial automation, machine operation, process monitoring
Compatibility	Allen-Bradley PLC systems (RSLogix / Studio 5000)
Mounting	Panel-mounted
Screen Size	10.4 inches color TFT display
Resolution	640 x 480 pixels
Communication Ports	RS-232, RS-485, Ethernet
Operating Temperature	0–50°C
