Description

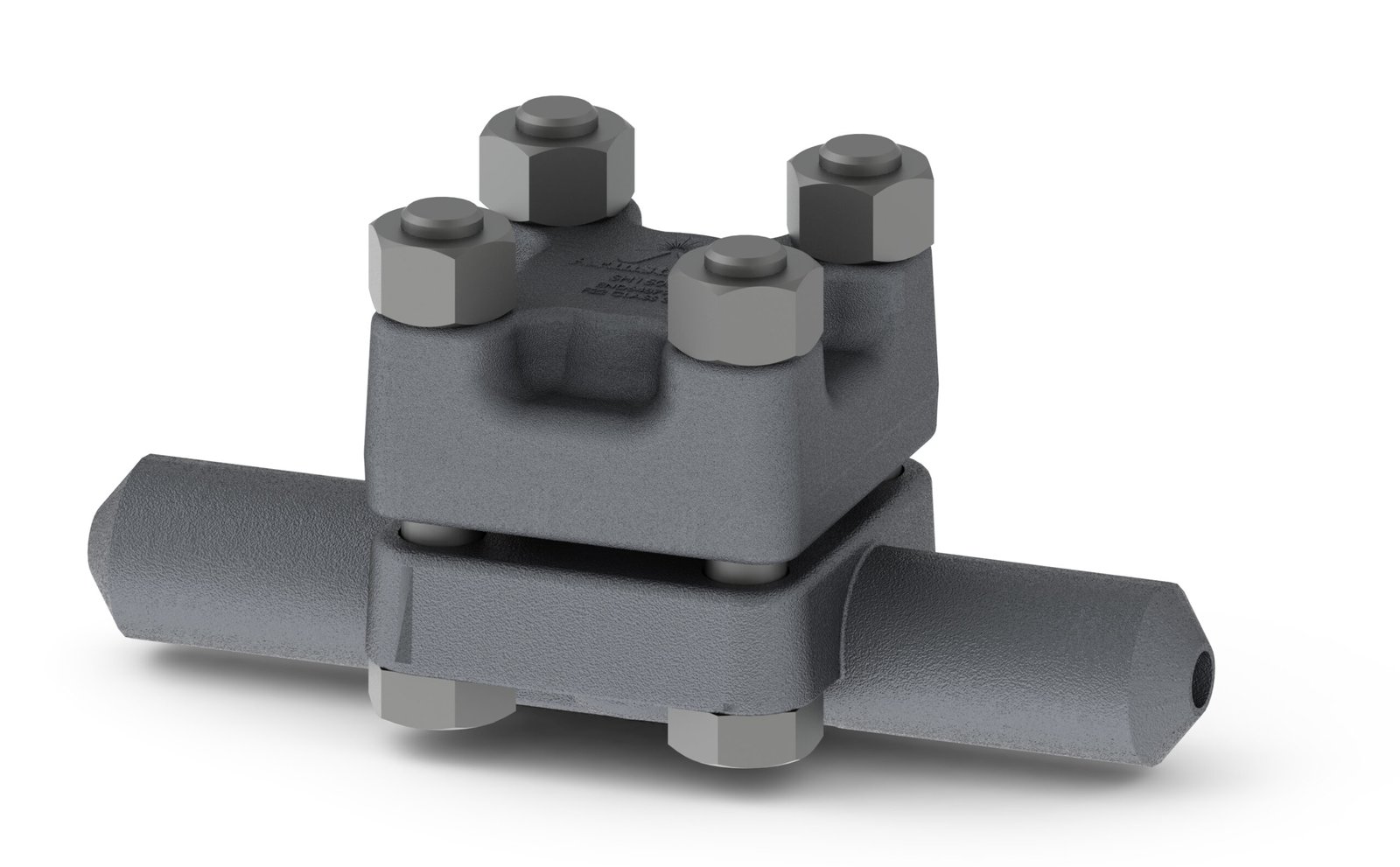

SH-1600 Steam Trap, 1″ Socket Weld, 1750 psi MOP – ARMSTRONG D678966
The SH Series superheat steam trap operates based on the effect of temperature on bimetallic elements. At startup, the valve remains wide open, allowing non-condensables and cold condensate to be expelled. As the trap reaches steam temperature, the bimetallic elements pull the valve into the seat, closing the trap. Once the elements cool, the valve cracks open again, venting condensate and non-condensables before closing when steam temperature is restored.
Designed for harsh superheated steam environments, the SH-1600 series utilizes titanium valves and seats to ensure exceptional durability and extended service life. It automatically adjusts to changing steam conditions, making it ideal for low-load and high-pressure steam applications.
Specifications
| Feature | Details |
|---|---|
| Part Number | ARMSTRONG D678966 |
| Model | SH-1600 |
| Body Material | Forged Chrome-Moly Steel (ASTM A-182 F22 Class 3) |
| Valve & Seat | Titanium |
| Bimetallic Elements | Nickel-Chrome & Stainless Steel |
| Strainer & Screen | Integral Stainless Steel |
| Bolt Material | ASTM A193 Gr. B16 |
| Nut Material | ASTM A194 Gr. 7 |
| Maximum Allowable Pressure | 1750 psig @ 970°F (120.6 barg @ 520°C) |
| Maximum Operating Pressure | 1750 psig (120.6 barg) |
| Suggested Minimum Operating Pressure | 600 psig (41 barg) |
| Pipe Connection Sizes | 1/2″, 3/4″, 1″ (15mm, 20mm, 25mm) |
| End-to-End (Socket Weld & Butt Weld) | 12-3/8″ (315mm) |
| Height (B) | 5-3/16″ (148mm) |
| Centerline to Top (D) | 4-13/16″ (123mm) |
| Width (E) | 5″ (127mm) |
| Weight (SW/BW) | 33 lbs (15.0 kg) |
| Connection Types | Socket Weld, Butt Weld, Flanged |
Key Features
-
Bimetallic temperature-sensitive operation for efficient condensate removal.
-
Forged chrome-moly steel body ensures strength and longevity.
-
Titanium valve and seat for high durability in superheated steam conditions.
-
Inline repairable design for ease of maintenance.
-
Automatically adjusts to changing pressure and temperature conditions.
-
Capable of handling superheated steam applications up to 1750 psi.
How to Order
-
Specify model number (SH-1600).
-
Indicate maximum operating pressure.
-
Select pipe connection type and size.
-
For flanged models, specify flange type.
