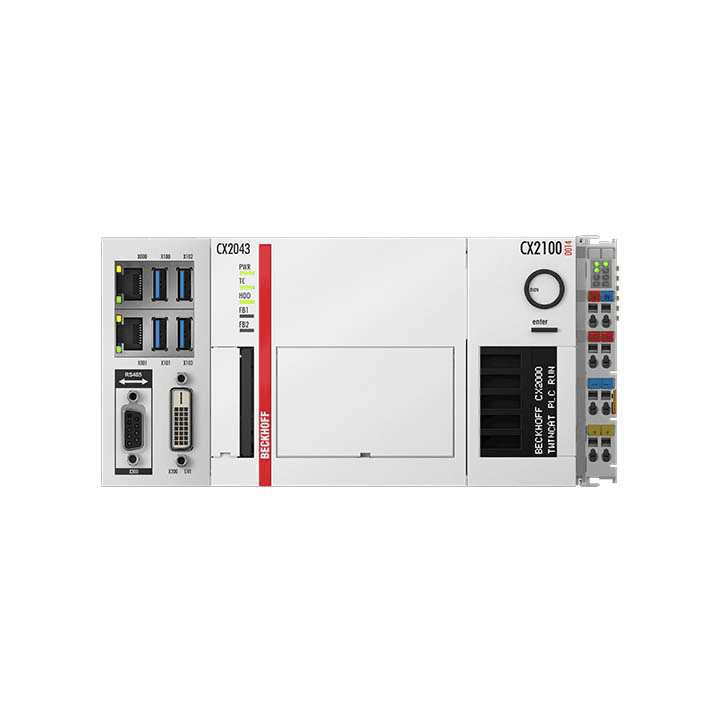

BECKHOFF CX2043‑0100 Embedded CPU Module
$ 3,699Each
Lead Time : 7 Weeks
Ex-Works : USA
Key Features
-
Industrial‑grade embedded CPU core optimized for automation control tasks
-
High‑performance AMD Ryzen™ processor with multi‑core processing capability
-
Modular DIN‑rail design supports flexible system expansion
-
Versatile connectivity with Ethernet, USB, video and optional interfaces
-
Designed for harsh industrial environments with robust thermal and EMC performance
BECKHOFF CX2043‑0100 Embedded CPU Module
Beckhoff’s CX2043‑0100 is a rugged, industrial embedded CPU module designed for automation control and machine server tasks in demanding manufacturing environments. Engineered for DIN‑rail mounting, it serves as a high‑performance compute core for PLC, motion control, and distributed I/O systems without an operating system or pre‑installed TwinCAT runtime, giving system integrators flexibility to configure software and functionality per project needs. This module is ideal for advanced automation architectures in factory automation, robotics, packaging, material handling, and process industries.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Beckhoff |
| Product Type | Embedded CPU Module |
| Part Number | CX2043‑0100 |
| Function | Industrial control computing core |
| Processor | AMD Ryzen™ V1807B @ 3.35 GHz, 4 cores |
| Memory | 8 GB DDR4 RAM (factory expandable to 32 GB) |
| Flash Storage | CFast card slot (card not included) |
| I/O Interfaces | 2×RJ45 Gigabit Ethernet, 1×DVI‑D, 4×USB 3.0, 1×optional |
| Diagnostics | LEDs for power, status, flash, bus |
| Mounting | DIN‑rail modular |
| Power Supply | 24 V DC (‑15 %/+20 %) |
| Power Consumption | Up to 70 W |
| Operating Temp. | ‑25 °C to +60 °C |
| Protection Rating | IP20 |
| Weight | ~1230 g |
| Operating System | None (no OS preinstalled) |
| Software Compatibility | TwinCAT/BSD, Windows/PLC runtimes when configured |
