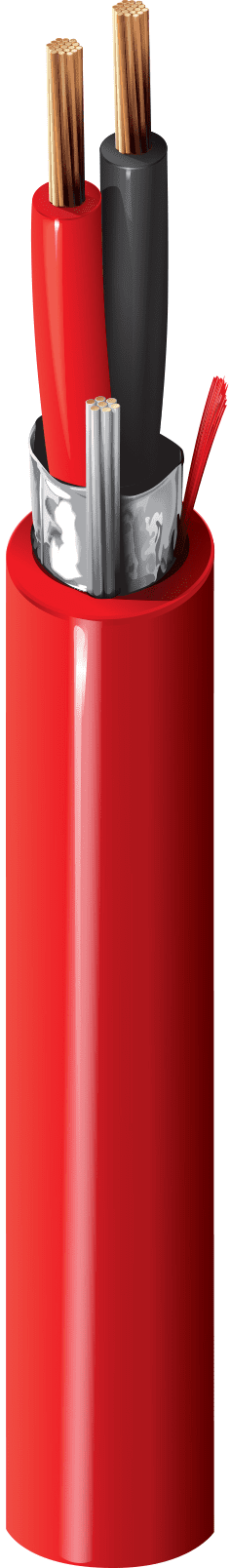

Belden Fire Alarm #12-2c BC Shielded FPLR Cable
$ 14,953
Part No: #12-2c BC
Belden Fire Alarm #12-2c BC Shielded FPLR Cable – A high-performance fire alarm cable, designed for indoor use in riser applications. Featuring 12 AWG stranded bare copper conductors, polypropylene insulation, and a Beldfoil® shield, this cable ensures reliable signal transmission in noisy environments. It is UL1666 Riser rated and complies with IEEE 1202 FT4 standards. This cable is ideal for fire alarm, control, and notification circuits.
Description
| Specification | Details |
|---|---|
| SKU | #12-2c BC |
| Brand | Belden |
| Cable Type | Fire Alarm Cable (Riser-FPLR) |
| Conductors | 2-12 AWG Stranded Bare Copper |
| Insulation Material | Polypropylene (PP) |
| Insulation Thickness | 0.011 in (0.28 mm) |
| Insulation Color Code | Black & Red |
| Outer Shield | Beldfoil® Shield (Aluminum + Polypropylene Tape) |
| Shield Coverage | 100% |
| Drain Wire Type | 20 AWG (7×28) TC |
| Outer Jacket Material | PVC (Polyvinyl Chloride) |
| Outer Jacket Thickness | 0.017 in (0.43 mm) |
| Outer Jacket Diameter | 0.264 in (6.71 mm) |
| Ripcord | Yes |
| Nominal Cable Diameter | 0.264 in (6.71 mm) |
| Maximum Current | 12 Amps per Conductor at 25ºC |
| Nom. Conductor DCR | 1.72 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 31 pF/ft (100 pF/m) |
| Nom. Capacitance Cond-to-Shield | 55.8 pF/ft (183 pF/m) |
| Voltage Rating | 300 V |
| Temperature Rating | UL: 75°C Operating, -20°C to +75°C |
| Bend Radius (Stationary Min.) | 3.96 in (101 mm) |
| Bend Radius (Installation Min.) | 3.96 in |
| Max. Pull Tension | 164 lbs (74.4 kg) |
| Bulk Cable Weight | 58 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability | UL1666 Riser, IEEE 1202 FT4 |
| Compliance | NEC Article 760, FPLR, EU CE Mark, China RoHS II |
