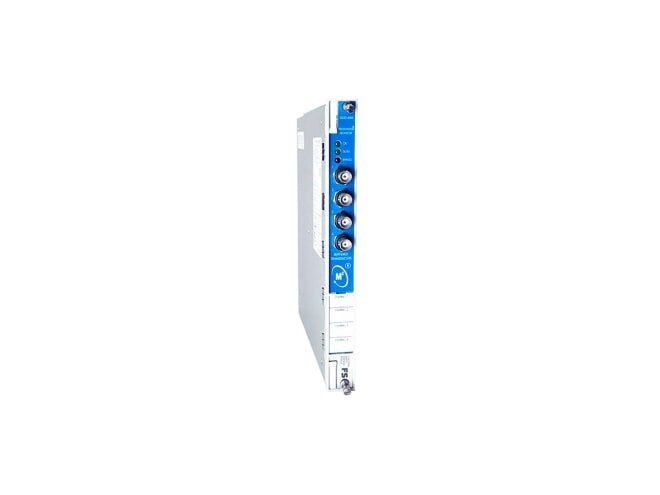

Bently Nevada Proximitor Monitor Module 3500/40M
$ 1,690
Part No: 3500/40M
• Four-channel Proximity transducer monitor for vibration/position measurement
• User-programmable static alarm thresholds for ALERT and DANGER levels
• LED indicators and bypass capability for diagnostic flexibility
• Designed for high reliability in industrial machinery protection systems
Description
Bently Nevada Proximitor Monitor Module 3500/40M
The Bently Nevada 3500/40M Proximitor Monitor is a four-channel module designed to interface with proximity transducers in the 3500 Series machinery protection system. It conditions incoming signals and compares vibration or position measurements to programmable alarm thresholds, providing essential protection and diagnostics.
| Specification | Detail |
|---|---|
| Product Type | Proximitor Monitor Module |
| Series | Bently Nevada 3500 Series |
| Channels | Four proximity transducer inputs |
| Supported Measurements | Radial vibration, thrust position, differential expansion, eccentricity, REBAM |
| Power Consumption | 7 to 7.7 Watts |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | Up to 95% RH, non‑condensing |
| Input Impedance | 10 kΩ standard I/O; 50 kΩ with bussed internal barrier I/O |
| Transducer Power Supply | −24 V DC |
| Output Impedance | ~550 Ω for buffered coaxial output connectors |
| Front-Panel LEDs | OK (module status), TX/RX (communication), Bypass mode indicator |
| Sensitivity | 3.94 mV/µm or 7.87 mV/µm (range-selectable per channel) |
| Signal Filtering | Configurable direct and gap filters; e.g. 4 Hz–4000 Hz or 1 Hz–600 Hz |
| Dimensions (H × W × D) | ~241.3 mm × 24.4 mm × ~241.8 mm |
| Weight | ~0.91 kg |
| Module Slot | Full‐height front slot (typically Slot 1) |
