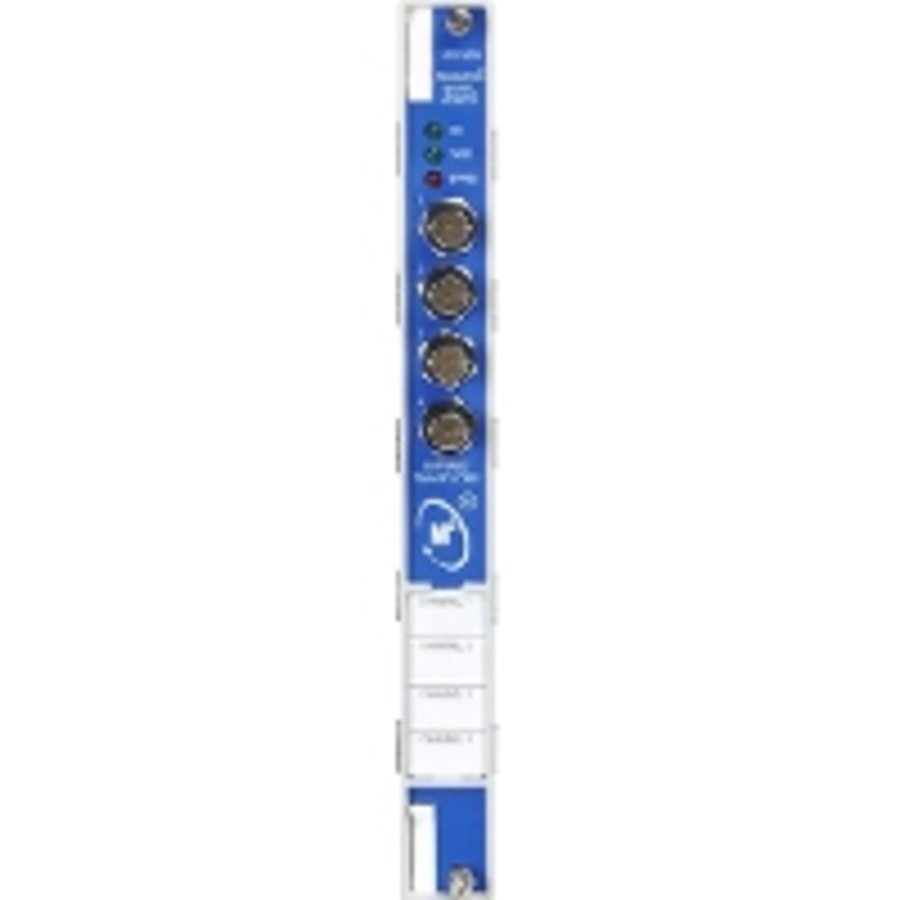

Bently Nevada Proximitor Seismic Monitor Module 3500/42M
$ 1,690
Part No: 3500/42M
• Four‑channel monitor for proximity and seismic transducers
• Monitors multiple vibration and position parameters with user-programmable alarm setpoints
• LED indicators and bypass mode enhance diagnostics and maintenance
• Built for robust industrial protection within the 3500 rack system
Description
Bently Nevada Proximitor Seismic Monitor Module 3500/42M
The Bently Nevada 3500/42M is a four‑channel Proximitor/Seismic Monitor module for the 3500 Series Machinery Protection System. It processes signals from proximity and seismic transducers, providing vibration and position monitoring with configurable alarm thresholds for critical machinery protection.
| Specification | Detail |
|---|---|
| Product Type | Proximitor/Seismic Monitor Module |
| Series | Bently Nevada 3500 Series |
| Channels | Four proximity or seismic transducer inputs |
| Measurements | Radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, shaft absolute, circular acceptance region |
| Alarm Configuration | Programmable ALERT and DANGER setpoints per channel pair; alarm delay programmable |
| Input Impedance | 10 kΩ standard |
| Sensitivity Options | 3.94 mV/µm or 7.87 mV/µm (range-selectable) |
| Power Consumption | Approx. 7.7 Watts |
| Front Panel Indicators | OK, TX/RX, BYPASS LEDs |
| Static Value Resolution | 0.366 µA per bit; ±0.25 % accuracy at room temp; ±0.7 % over temperature |
| Update Rate | ~100 ms per measurement |
| Operating Temperature Range | –30 °C to +65 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity | Up to 95 % RH, non-condensing |
| Dimensions (H × W × D) | ~241 mm × 24.4 mm × 241 mm |
| Weight | ~0.91 kg (2.0 lb) |
| Rack Slot | Full-height slot in 3500 Series rack |
| Channel Programming | Channels paired configurable; up to two functions per pair, assigned via rack software |
| Compliance Certifications | EMC and environmental standards support |
