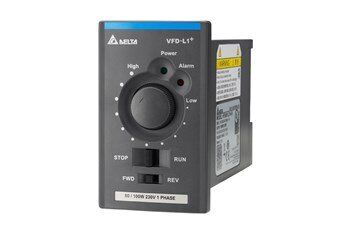

Compact AC Motor Drive – Delta L1 Plus Series

Product Headline
Delta L1 Plus Series Compact AC Motor Drive builds on the robust features of the L1 Series, maintaining its compact design and operational stability while enhancing flexibility.

Product Introduction
The Delta L1 Plus Series is an evolution of the reliable L1 Series, designed to meet a wide variety of automation needs. It features an adjustable V/f curve, allowing for improved flexibility in diverse applications. Built with a compact form factor, this drive ensures seamless integration while enhancing operational stability. The L1 Plus series is equipped with an auto torque boost feature to automatically optimize torque output, providing more power when needed without user intervention. Additionally, built-in Modbus communication facilitates easy setup and control, allowing for efficient data exchange and reducing the complexity of installation and configuration.

Applications

• Simple Wood Cutting Machines: Provides precise control for cutting applications, improving productivity and efficiency in woodworking processes.
• Conveyor Belts: Ensures smooth speed control, making it ideal for conveying materials in manufacturing or packaging systems.
• Wire Drawing Machines: Enhances precision and stability in wire drawing applications, contributing to consistent output quality.

Specifications

• Adjustable V/f Curve: The L1 Plus Series offers adjustable V/f curve settings, providing the flexibility to customize motor control for different load characteristics, resulting in optimized performance across various industrial applications.
• Output Frequency: Adjustable frequency range from 1.0 to 120 Hz, allowing for precise speed regulation of connected motors to match specific operational requirements.
• Carrier Frequency: Supports a carrier frequency of up to 10 kHz, helping reduce audible motor noise and providing smoother motor operation.
• Auto Torque Boost: Automatically enhances torque to meet varying load demands, ensuring optimal performance without the need for manual adjustments. This feature is particularly useful for applications that experience fluctuating loads.
• Communication: Built-in Modbus communication protocol with a baud rate of up to 9,600 bps. This facilitates seamless integration with other automation systems, enabling efficient monitoring and control.

Key Features

• Compact Design: The small footprint of the L1 Plus Series allows it to be easily installed in tight spaces, making it suitable for applications where space is limited.
• Operational Stability: Retains the robust and stable operation of the original L1 Series, ensuring reliable performance even in demanding industrial environments.
• Easy Integration: The inclusion of Modbus communication allows easy connectivity to various systems, enabling centralized control and monitoring.
• Enhanced Flexibility: Adjustable V/f curve and carrier frequency provide flexibility to optimize the drive’s performance according to specific application needs.

Summary
The Delta L1 Plus Series Compact AC Motor Drive is an ideal solution for industries seeking reliable, compact, and flexible motor control. It brings enhanced features and improved operational adaptability, while maintaining the dependable characteristics of its predecessor, the L1 Series. From woodworking to conveyor systems and wire drawing, the L1 Plus is designed to handle a variety of applications efficiently, making it a valuable addition to any automation setup.
