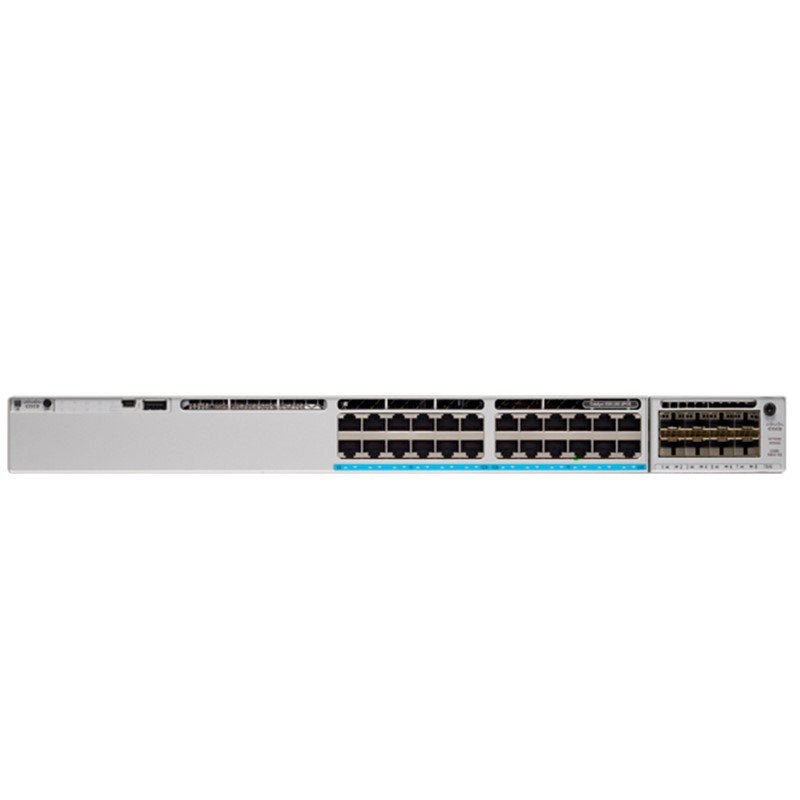

Cisco Catalyst 9300 C9300-24UX-E 24-Port Multigigabit Ethernet Switch Cisco
$ 2,742
Part No: C9300-24UX-E
Catalyst 9300 24-port Multigigabit Ethernet and UPOE, Network Essentials — Robust Cisco switch with 24 Multigigabit UPOE ports supporting up to 10 Gbps, 1100W AC power supply, 490W PoE power, Cisco StackWise-480 and StackPower, advanced routing capabilities, and extensive safety and environmental certifications.
Description
C9300-24UX-E Catalyst 9300 24-port Multigigabit Ethernet and UPOE, Network Essentials Cisco
| Feature | Specification |
|---|---|
| Part Number | C9300-24UX-E |
| Product Description | Catalyst 9300 24-port Multigigabit Ethernet and UPOE, Network Essentials |
| Total Ports | 24 Multigigabit Cisco UPOE (100 Mbps or 1, 2.5, 5, or 10 Gbps) |
| Power Supply | Default AC, 1100W AC (PWR-C1-1100WAC) |
| Available PoE Power | 490W |
| Switching Capacity | 640 Gbps (24-port Multigigabit Ethernet model) |
| Stacking Bandwidth | 480 Gbps |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Total MAC Addresses | 32,000 |
| IPv4 Routing Entries | 32,000 (24,000 direct routes, 8,000 indirect routes) |
| IPv6 Routing Entries | 16,000 |
| Multicast Routing Scale | 8,000 |
| QoS Scale Entries | 5,120 |
| ACL Scale Entries | 5,120 |
| Packet Buffer per SKU | 32 MB buffer |
| FNF Entries | 128,000 flows on 24-port Multigigabit |
| Memory (DRAM) | 8 GB |
| Flash Memory | 16 GB |
| VLAN IDs | 4,000 |
| Total SVIs | 2,000 |
| Jumbo Frames | 9,198 bytes |
| Total Routed Ports per Stack | 208 |
| Wireless Bandwidth per Switch | Up to 48 Gbps (24-port Gigabit Ethernet model) |
| Forwarding Rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 inches |
| Weight | 16.33 pounds |
| Mean Time Between Failures | 299,000 hours |
| Safety Certifications | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| Electromagnetic Emissions Certifications | 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317 |
| Environmental Compliance | ROHS 5 |
