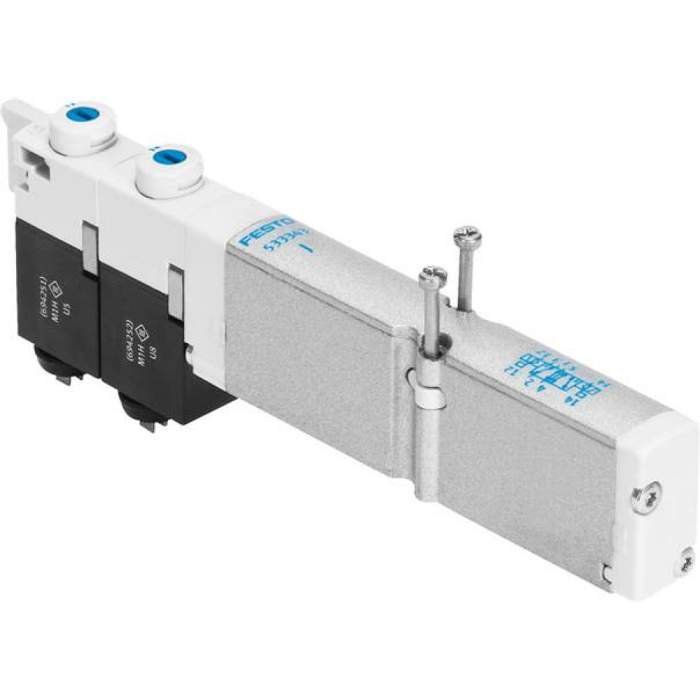

Festo Solenoid Valve VMPA1-M1H-K-PI
$ 61
VMPA1-M1H-K-PI
-
Compact 10 mm solenoid valve for space-saving pneumatic applications
-
2×3/2-way configuration with monostable closed function
-
High flow rate of 230 l/min with reliable performance
-
IP65 protection for harsh industrial environments
-
Optional detenting or non-detenting manual override
-
Durable aluminium housing with NBR seals
Festo Solenoid Valve VMPA1-M1H-K-PI
The Festo VMPA1-M1H-K-PI is a high-performance 2×3/2-way monostable closed solenoid valve designed for reliable and precise pneumatic control in automation systems. Featuring a compact 10 mm size, it delivers a standard nominal flow rate of 230 l/min with QS-6 connections. This valve supports electric actuation with a 24V DC power supply and offers both detenting and non-detenting manual override options for flexible operation. With its IP65 degree of protection, corrosion-resistant construction, and suitability for a wide range of operating pressures from 3 to 10 bar, the VMPA1-M1H-K-PI ensures long service life and consistent performance in industrial environments.
| Specification | Details |
|---|---|
| Valve Function | 2×3/2-way, monostable, closed |
| Type of Actuation | Electric |
| Valve Size | 10 mm |
| Flow Rate | 230 l/min (DIN 1343) |
| Operating Voltage | 24V DC |
| Operating Pressure | 3 bar to 10 bar |
| Design | Piston gate valve |
| Reset Type | Pneumatic spring |
| Protection Class | IP65 |
| Sealing Principle | Soft |
| Mounting Position | Optional |
| Manual Override | Detenting / Non-detenting |
| Piloting Type | Pilot actuated |
| Switching Time ON/OFF | 10 ms / 20 ms |
| Material Seals | NBR |
| Material Housing | Die-cast aluminium |
| Weight | 56 g |
