Fisher V150 Rotary Control Valve NPS 2 CL150
$ 6,998
Lead Time
8 Weeks
Ex-Works
Arizona USA
Shipping
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.
V150
-
NPS 2 rotary control valve
-
Modified equal percentage flow control
-
ANSI Class VI shutoff
-
Full-port ball design
-
CG8M stainless steel body and trim
-
PTFE packing with graphite gaskets
-
Suitable for precision process control

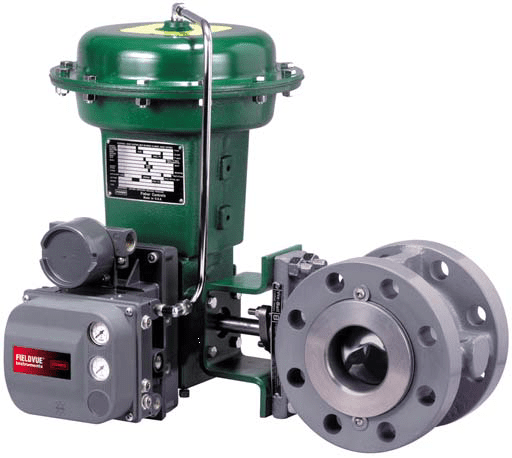

Fisher V150 Rotary Control Valve NPS 2 CL150
The Fisher V150 rotary control valve is engineered for precise flow control in demanding industrial process applications. Featuring a ball-style flanged body design, this valve delivers reliable shutoff performance with ANSI Class VI tightness. Constructed with CG8M stainless steel and premium internal components, it ensures long-term durability, corrosion resistance, and stable operation. The modified equal percentage characteristic provides accurate modulation across a wide operating range, making the V150 suitable for flow control in oil & gas, chemical, and process automation systems.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Fisher |
| Product Type | Rotary Control Valve |
| Valve Type | V150 |
| Valve Size | NPS 2 |
| Pressure Rating | Class 150 |
| Port | Full Port |
| Shutoff Class | ANSI Class VI |
| Flow Direction | Forward |
| Characteristic | Modified Equal Percentage |
| Body Material | CG8M Stainless Steel |
| Body Style | Ball, Flanged |
| End Connection | RF Flange |
| Ball Material | CG8M SST / CRPL |
| Ball Seal | Composite |
| Seal Material | TCM Plus |
| Bearing Material | PEEK / PTFE |
| Packing | PTFE |
| Gaskets | Graphite |
| Shaft Material | S20910 Stainless Steel |
| Shaft Size | 5/8 inch |
| Shaft Style | Splined |
| Ball Rotation | Counter-clockwise to close |
| Actuator Mounting | Right hand |
| Mounting Adaptation | Style F |
| Face-to-Face Standard | ISA S75.08.02 |
| Body Yoke Bolting | Steel |
| Body Tap | No |
| Internal Coating | None |
| Seal Protector Ring | CG8M Stainless Steel |
| Backup Ring | CG8M Stainless Steel |
| Ball Position at 90° Open | Top of body |
| NACE | No |
| NORSOK | No |
| Bonding Strap | No |
| Attenuator | No |
| Secondary Shaft Retention | No |
