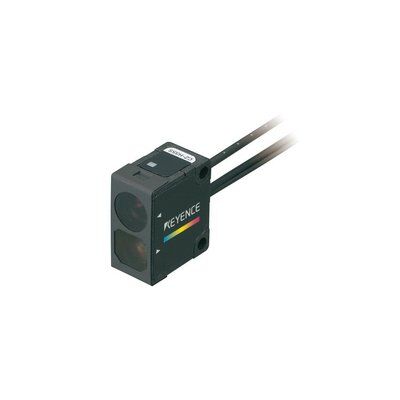

Keyence CZ-H35S Reflective Sensor Head with Shine Cancellation
$ 225
Part No: CZ-H35S
-
Reflective sensor head with shine cancellation technology
-
Optimal detection at 40 mm distance
-
Multi-color LED for accurate object detection
-
IP40 rating for industrial environments
Description
Keyence CZ-H35S Reflective Sensor Head with Shine Cancellation
The Keyence CZ-H35S is a reflective sensor head designed with luster cancellation technology, enabling stable detection of targets with shiny or reflective surfaces. It operates over a detecting area of 28 to 52 mm, with optimal performance at 40 mm. The sensor utilizes red, green, and blue LED light sources for versatile object detection, while maintaining reliable performance in environments with high ambient light.
| Specification | Detail |
|---|---|
| Model | CZ-H35S |
| Type | Luster cancel |
| Detecting Area | 28–52 mm (1.10″–2.05″) — Recommended: 40 mm (1.57″) |
| Smallest Spot Diameter | 4.5 mm (0.18″) at 40 mm reference distance |
| Light Source | Red LED (665 nm) / Green LED (520 nm) / Blue LED (465 nm) |
| Minimum Bend Radius of Fiber | 25 mm (0.98″) |
| Enclosure Rating | IP40 |
| Ambient Light | Incandescent ≤ 10,000 lux; Sunlight ≤ 20,000 lux |
| Ambient Temperature | -10 to +55°C (14 to 131°F) (No freezing) |
| Vibration Resistance | 10–55 Hz, Double amplitude 1.5 mm (0.06″), 2 hrs in each of X, Y, Z axes |
| Material | Housing: Triacetate, Polyarylate (Metal: SUS304 stainless steel), Lens cover: Fiberglass reinforced plastic |
| Weight | Approx. 40 g |
