LE1 OEM PRESSURE TRANSMITTER LE10060 – 30″/0/60 PSI

208.29$

Part No: LE10060
LE1 OEM PRESSURE TRANSMITTER 30″/0/60 PSI This high-performance transmitter features a compact stainless steel design, ceramic sensor, and excellent accuracy of ±0.5%. It’s ideal for various applications including pump monitoring and HVAC systems.

Feature	Details
Product Type	LE1 OEM Pressure Transmitter
Certification	CE, RoHS
Construction	Compact stainless steel construction with ceramic sensor
Pressure Range	Available ranges include Vac up to 8,700 psi (600 bar)
Connections	Wide range of mechanical and electrical connections
Accuracy	±0.5% accuracy (±1% for pressures ≤45 psi)
Enclosure Rating	IP65 and IP67
Warranty	5-year warranty
Applications	Suitable for a variety of applications including pump and compressor monitoring, refrigeration, and HVAC
Output Signal	Standard 2-wire: 4-20 mA / Vs = 12-30 Vdc Optional 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc
Response Time	<10 ms
Insulation	>100 MΩ @ 50V
Permissible Temperatures	Operating: -40°F to 212°F (-40°C to 100°C) Compensating: 14°F to 176°F (-10°C to 80°C)
Pressure Port / Housing	304 SS
Wetted Parts	Diaphragm: Ceramic (up to 2,900 psi) Seals: NBR, Diaphragm: silicone (over 3,000 psi)
Current Consumption	2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA)
EMC	EMI: EN50087-1/-2 EMS: EN50082-2
Stability	Vibration: 10 g / 5 Hz to 200 Hz Shock: 20 g / 11 ms
Operation Life	2 million cycles
Approval	CE, RoHS

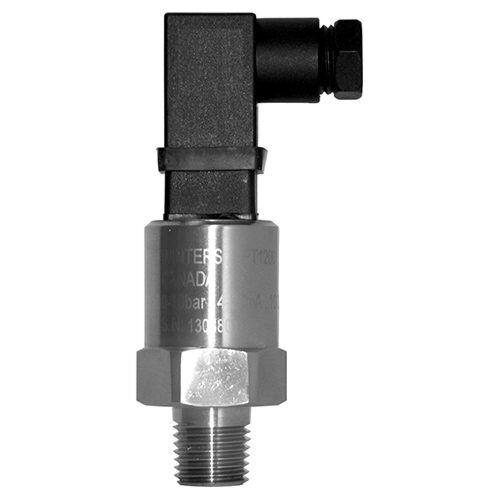

LE1 OEM PRESSURE TRANSMITTER LE10060 - 30"/0/60 PSI

Click to enlarge

Previous product

Pelco IMM12027-1I 12 Megapixel 270° Panoramic In-Ceiling, Indoor Vandal Network 1,998.75$

Back to products

Next product

LE1 OEM PRESSURE TRANSMITTER LE1601 0/60 PSI, 0.5/4.5VDC, MICRO-DIN, 304 SS, CERAMIC, 1/4" NPT, 0.5% 218.78$

Compare

Add to wishlist

Category: Pressure Transmitters

Description
Reviews (0)

Description

Feature	Details
Product Type	LE1 OEM Pressure Transmitter
Certification	CE, RoHS
Construction	Compact stainless steel construction with ceramic sensor
Pressure Range	Available ranges include Vac up to 8,700 psi (600 bar)
Connections	Wide range of mechanical and electrical connections
Accuracy	±0.5% accuracy (±1% for pressures ≤45 psi)
Enclosure Rating	IP65 and IP67
Warranty	5-year warranty
Applications	Suitable for a variety of applications including pump and compressor monitoring, refrigeration, and HVAC
Output Signal	Standard 2-wire: 4-20 mA / Vs = 12-30 Vdc Optional 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc
Response Time	<10 ms
Insulation	>100 MΩ @ 50V
Permissible Temperatures	Operating: -40°F to 212°F (-40°C to 100°C) Compensating: 14°F to 176°F (-10°C to 80°C)
Pressure Port / Housing	304 SS
Wetted Parts	Diaphragm: Ceramic (up to 2,900 psi) Seals: NBR, Diaphragm: silicone (over 3,000 psi)
Current Consumption	2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA)
EMC	EMI: EN50087-1/-2 EMS: EN50082-2
Stability	Vibration: 10 g / 5 Hz to 200 Hz Shock: 20 g / 11 ms
Operation Life	2 million cycles
Approval	CE, RoHS
