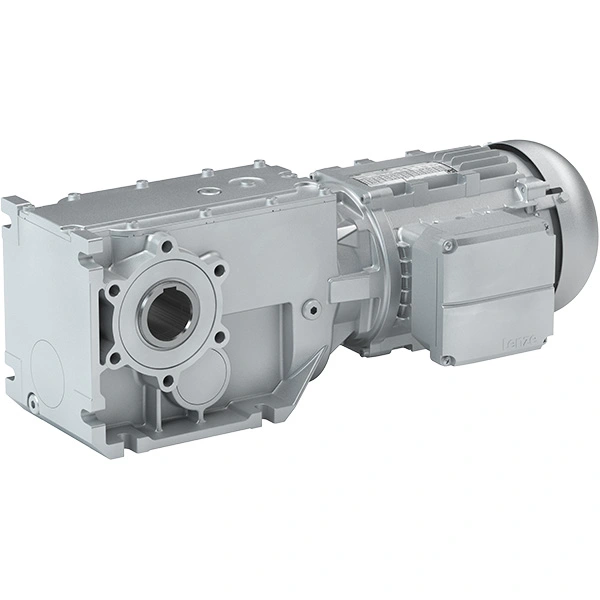

LENZE g500 Bevel Geared Motor G50BB215MHAK3C00
$ 7,500Each
LENZE g500 Bevel Geared Motor G50BB215MHAK3C00
The LENZE g500 bevel geared motor G50BB215MHAK3C00 is a high-performance industrial drive solution designed for reliable torque transmission and efficient power delivery in demanding automation environments. Built with precision German engineering, this geared motor combines the g500 bevel gearbox with the m550 series motor to deliver dependable performance, smooth operation, and long service life.
This unit is engineered for applications requiring high torque at low output speeds, making it ideal for conveyors, material handling systems, packaging machinery, and industrial automation equipment. With an IE3 high-efficiency motor, direct motor-to-gearbox mounting, and robust IP55 enclosure protection, the system ensures reliable performance while maintaining energy efficiency and operational stability in industrial environments.
The hollow shaft design and foot-mounted configuration allow easy integration into existing mechanical drive systems, while the corrosion-protected basalt grey housing provides durability for continuous industrial operation.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | LENZE |
| Product Type | Bevel Geared Motor |
| Part Number | G50BB215MHAK3C00 |
| Gearbox Series | g500 |
| Motor Series | m550 |
| Function | Speed reduction and torque transmission for industrial machinery |
| Application | Conveyors, industrial automation, material handling systems, packaging machinery, and processing equipment |
| Gearbox Model | g500-B1500 |
| Motor Model | m550-P112/M4 |
| Rated Frequency | 50 / 60 Hz |
| Rated Power | 4 kW |
| Gear Ratio | 71.566 |
| Output Speed | 20.5 / 24.8 r/min |
| Output Torque | 1767 / 1462 Nm |
| Motor Rated Speed | 1470 / 1775 r/min |
| Efficiency Class | IE3 |
| Power Factor | 0.86 / 0.85 |
| Rated Voltage | 400 / 460 V (Y connection) |
| Enclosure Protection | IP55 |
| Shaft Type | Hollow Shaft |
| Output Shaft Diameter | 50 mm |
| Mounting | Foot mounted with centering |
| Output Flange | Through hole flange |
| Flange Diameter | 300 mm |
| Lubricant Type | CLP 460 |
| Lubricant Quantity | 5.50 liters |
| Mounting Position | M5 |
| Surface Protection | OKS-S corrosion protection |
| Color | RAL 7012 Basalt Grey |
| Breather Element | Mounted |
| Compatibility | Industrial automation systems, conveyor drives, and mechanical power transmission assemblies |
