Description

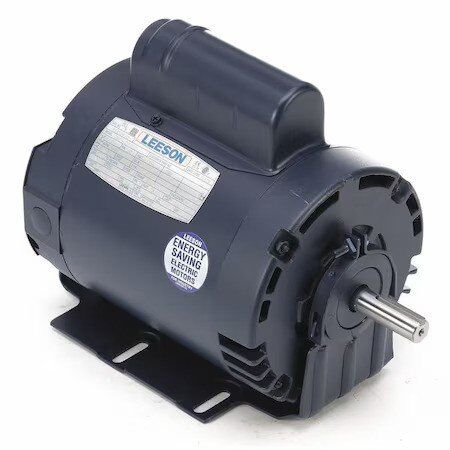

Leeson 50 Hz Motor, 1/2 HP, 1425 RPM, 110/220V, Frame 56, ODP
The Leeson 50 Hz Motor is a reliable and durable capacitor-start AC motor designed for general-purpose industrial applications. With a power rating of 1/2 horsepower and operating at 1425 RPM, this motor is engineered for consistent performance under 50 Hz frequency conditions. It features a voltage rating of 110/220V, allowing flexible installation based on available power sources.
This model includes a rigid base mounting and is suitable for use in all mounting positions, enhancing installation versatility. Its Open Dripproof (ODP) enclosure is ideal for clean and dry environments, ensuring adequate ventilation while protecting the motor from larger particulates.
Built with ball bearings and a keyed shaft design, it supports smooth rotation in both CW (clockwise) and CCW (counter-clockwise) directions. With an ambient temperature rating of 40°C, a shaft diameter of 5/8″, and a length less shaft of 8-1/2″, the motor is compact yet powerful for many medium-duty tasks.
Manufactured in the United States, this Leeson motor is well-regarded for its performance, reliability, and long-term value in industrial environments.
Technical Specifications:
| Feature | Specification |
|---|---|
| Brand | Leeson |
| Motor Type | Capacitor-Start AC Motor |
| Power Rating | 1/2 HP (0.5 hp) |
| Voltage | 110/220V |
| Frequency | 50 Hz |
| Speed | 1425 RPM |
| Phase | Single Phase |
| Full Load Amps | 8.2 / 4.1 |
| Enclosure Type | Open Dripproof (ODP) |
| Frame Size | 56 |
| Mounting Type | Rigid Base |
| Mounting Position | All Angle |
| Insulation Class | B |
| Motor Bearings | Ball Bearings |
| Motor Shaft Rotation | CW / CCW |
| Shaft Design | Keyed |
| Shaft Diameter | 5/8 in. |
| Shaft Length | 1-7/8 in. |
| Length Less Shaft | 8-1/2 in. |
| RPM Range | 1401–1500 |
| Service Factor | 1.25 |
| Motor Thermal Protection | None |
| Material | Copper |
| Country of Manufacture | United States |
