Maddox General Purpose 30 kVA 3-Phase Dry-Type Transformer
$ 5,320Each
Unit : Each
Lead Time
1 Week
Ex-Works
USA
Shipping
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.
Key Features
-
Reliable 30 kVA dry-type transformer for commercial and industrial use
-
Multiple primary and secondary taps for flexible voltage adjustment
-
Outdoor-rated NEMA 3R enclosure for safe weather-resistant installation
-
Aluminum conductors for lightweight yet efficient power handling
-
Designed for 60 Hz operation with 150 °C temperature rise capability

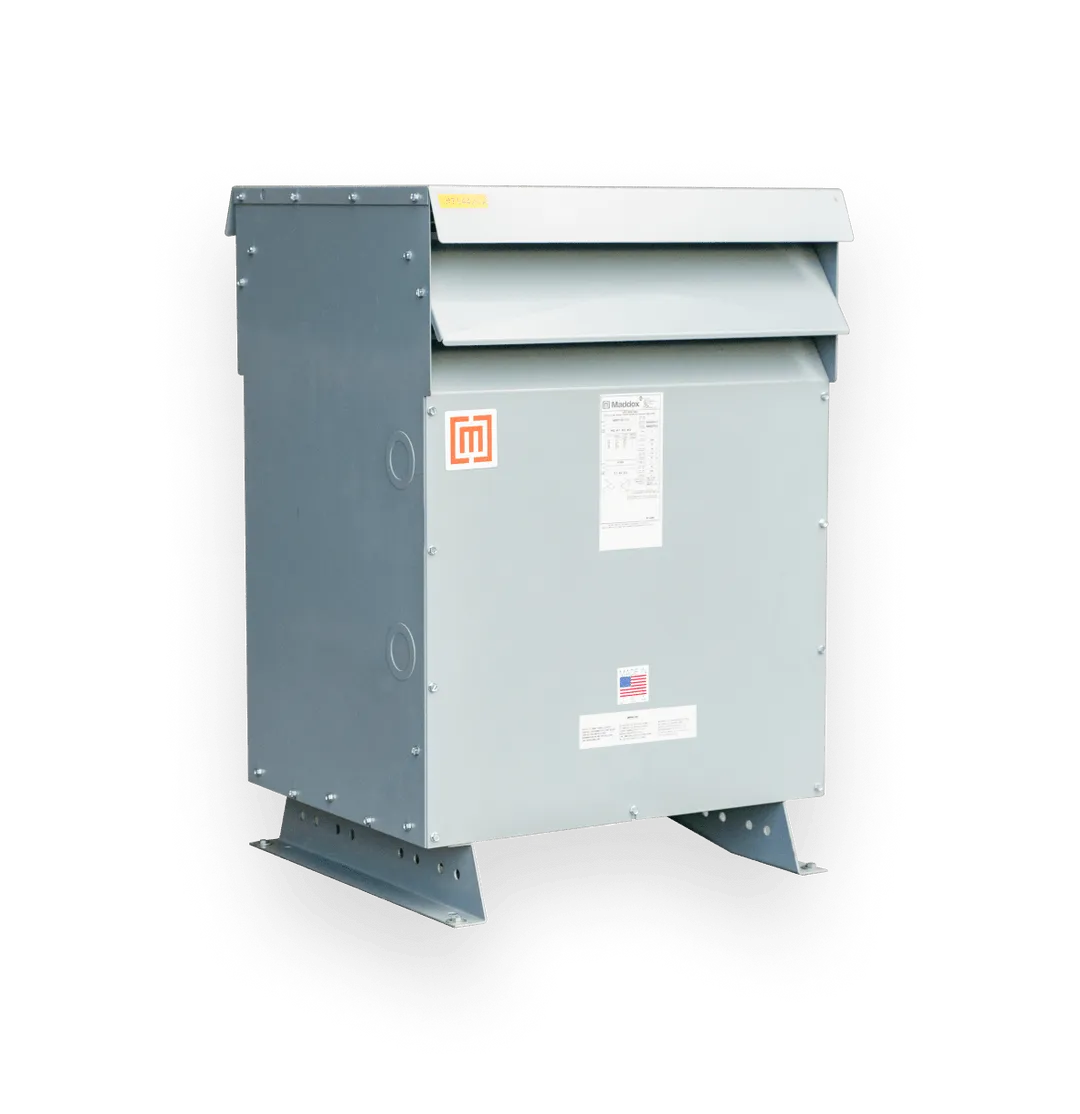

Maddox General Purpose 30 kVA 3-Phase Dry-Type Transformer
The Maddox 30 kVA 3-phase dry-type transformer is designed for efficient power distribution in commercial and industrial applications. Featuring aluminum conductors, outdoor-rated NEMA 3R enclosure, and multiple primary and secondary taps, this transformer provides reliable voltage regulation and safe operation in harsh environments.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Maddox |
| Product Type | Dry-Type Transformer |
| Part Number | 30 kVA 3-Phase |
| Power Rating | 30 kVA |
| Phase | 3-Phase |
| Primary Voltage | 480 V Delta, 10 kV BIL |
| Secondary Voltage | 400 V Wye, 231 V, 10 kV BIL |
| Primary Taps | 504, 492, 480, 469, 457, 445, 433 V |
| Secondary Taps | 416, 400, 380 V |
| Frequency | 60 Hz |
| Temperature Rise | 150 °C |
| Cooling Class | AA |
| Conductor Material | Aluminum / Aluminum |
| Enclosure | Outdoor, NEMA 3R |
| Application | General-purpose industrial and commercial power distribution |
