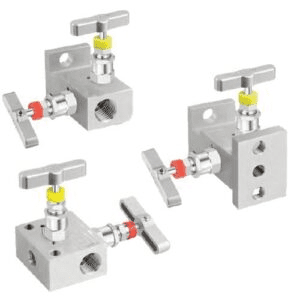

MVA 2-HANDLE MANIFOLDS MVA2SS2P WinSMART™
$ 583
Part No: MVA2SS2P
MVA 2-HANDLE MANIFOLDS Rugged stainless steel 316 manifold with a 2-handle configuration for 1/2” NPT connections. Rated for 6,000 psi with PTFE packing and soft seats, perfect for industrial and process environments.
Description
MVA 2-HANDLE 316SS 1/2″ NPT F x 1/2″ NPT F, SOFT, PTFE, 6000 PSI
DESCRIPTION & FEATURES
- Engineered for seamless integration with differential pressure transmitters and impulse lines.
- Includes a 2-handle design featuring one isolation valve and one vent valve.
- The isolation valve is positioned at the top, with block-and-bleed functionality on the side, creating a 90-degree layout.
- Configurable options include pipe-to-pipe, pipe-to-flange, and flange-to-flange connections.
- Constructed with various materials to accommodate diverse media requirements.
- Offers both soft and hard seat options with pressure ratings of 6,000 psi and 10,000 psi.
- Standard PTFE packing with optional Graphoil for enhanced performance.
- Canadian Registration Number (CRN) available upon request.
- Backed by a 5-year manufacturer’s warranty.
APPLICATIONS
- Specifically designed for optimal compatibility with Winters WinSMART™ Series transmitters using M10x45 bolts.
- Suitable for other pressure transmitters requiring robust and reliable manifolds.
- Crucial in industrial and process environments to facilitate shutdowns for instrument testing, repair, or upgrades.
SPECIFICATIONS
| Feature | Details |
|---|---|
| Part Number | MVA2SS2P |
| Connection | 1/2” NPT Female x 1/2” NPT Female |
| Handles | Straight or Angled |
| Material | 316 Stainless Steel |
| Seat Type | Hard Seat or Soft Seat |
| Packing Material | PTFE (Graphoil optional) |
| Max Pressure | 10,000 psi |
