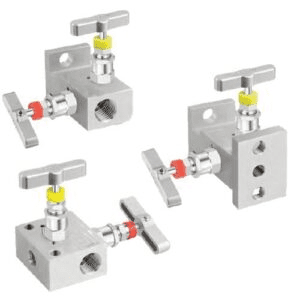

MVA 2-HANDLE 316 SS 1/2″ NPT F x FLANGE, SOFT, PTFE, 6000 PSI
DESCRIPTION & FEATURES
- Built for reliable use with differential pressure transmitters and impulse lines.
- Features a 2-handle design with one isolation valve and one vent valve.
- The isolation valve is located on the top, while the block-and-bleed assembly is side-mounted in a 90-degree arrangement.
- Available in various configurations: pipe-to-pipe, pipe-to-flange, and flange-to-flange connections.
- Constructed to handle diverse media types with multiple material options.
- Pressure ratings include 6,000 psi for soft seats and 10,000 psi for hard seats.
- Standard PTFE packing; optional Graphoil for enhanced durability.
- CRN certification can be provided upon request.
- Includes a 5-year manufacturer’s warranty for added assurance.
APPLICATIONS
- Designed to integrate seamlessly with Winters WinSMART™ Series transmitters using M10x45 bolts.
- Compatible with other pressure transmitters requiring durable manifold solutions.
- Essential for industrial and process environments, enabling shutdowns for instrument maintenance, testing, and upgrades.
SPECIFICATIONS
| Feature | Details |
|---|---|
| Part Number | MVA2SS2T |
| Connection | 1/2” NPT Female x Flange |
| Handles | Straight or Angled |
| Material | 316 Stainless Steel |
| Seat Type | Hard Seat or Soft Seat |
| Packing Material | PTFE (Graphoil optional) |
| Max Pressure | 10,000 psi |
