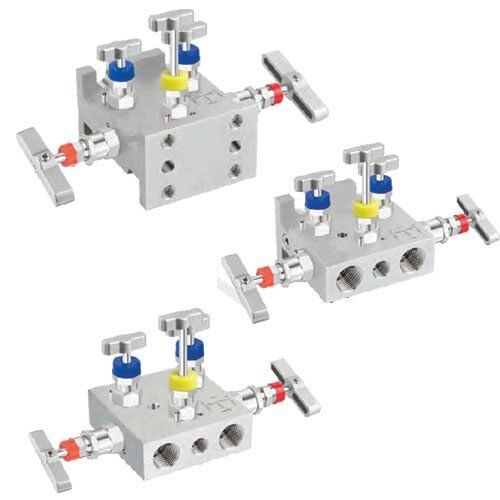

MVA 5-HANDLE MANIFOLDS MVA5SS2F WinSMARTâ„¢

$1,899.00

Part No: MVA5SS2F
MVA 5-HANDLE MANIFOLDS This high-performance manifold is built for pressure applications up to 6,000 psi, featuring 5 handles for versatile control. Ideal for differential transmitters, it’s constructed from durable 316 stainless steel and is perfect for use in demanding industrial environments.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

MVA 5-HANDLE 316SS FLANGE x FLANGE, SOFT, PTFE, 6000 PSI

DESCRIPTION & FEATURES

  • Designed for differential pressure transmitters and impulse lines.
  • 5-handle configuration with two isolation valves, one equalizing valve, and two vent valves.
  • Available in pipe-to-pipe, pipe-to-flange, and flange-to-flange configurations.
  • Constructed to handle a wide range of media with various construction variants.
  • Soft and hard seat options available, pressure rated for 6,000 psi and 10,000 psi.
  • PTFE packing standard, with optional Graphoil for enhanced sealing.
  • CRN available on request.
  • Backed by a 5-year warranty.

APPLICATIONS

  • Compatible with Winters LY36 Series and other differential transmitters (M10x45 bolts required).
  • Crucial for industrial and process environments, enabling shutdowns for maintenance, testing, and upgrades.

SPECIFICATIONS

Feature Details
Part Number MVA5SS2F
Connection Flange x Flange
Handles Straight or Angled
Material 316 Stainless Steel
Seat Type Soft or Hard Seat
Packing Material PTFE or Graphoil
Max Pressure 6,000 psi
