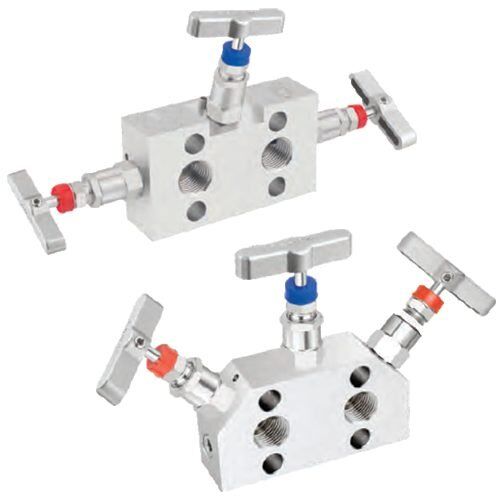

MVA 3-HANDLE ANGULAR DIRECT MOUNT MANIFOLD VALVE MVA3ASS2D WinSMART™
$ 1,485
Part No: MVA3ASS2D
MVA 3-HANDLE 316SS 1/2″ NPT F x 1/2″ NPT F DIRECT MOUNT, SOFT, PTFE, 6000 PSI – Compact design, rugged construction, ideal for differential pressure transmitters and impulse lines.
Description
MVA 3-HANDLE 316SS 1/2″ NPT F x 1/2″ NPT F DIRECT MOUNT, SOFT, PTFE, 6000 PSI
DESCRIPTION & FEATURES
- Compact wafer design for direct mounting.
- Rugged and designed for use with differential pressure transmitters and impulse lines.
- 3-handle configuration: two isolation valves, one equalizing valve.
- Straight and angled patterns to suit all installation needs.
- Multiple construction variants available to handle various media.
- Soft and hard seat options available, pressure rated for 6,000 psi and 10,000 psi.
- PTFE packing standard, with optional Graphoil for enhanced sealing.
- CRN available upon request.
- Comes with a 5-year warranty.
APPLICATIONS
- Designed for installation with Winters LY36 Series and other differential transmitters (M10x45 bolts required).
- Critical in industrial and process environments for enabling shutdowns during testing, repairs, and upgrades.
SPECIFICATIONS
| Feature | Details |
|---|---|
| Part Number | MVA3ASS2D |
| Connection | 1/2″ NPT F x 1/2″ NPT F Direct Mount |
| Handles | Straight or Angled |
| Material | 316 Stainless Steel |
| Seat Type | Hard Seat or Soft Seat |
| Packing Material | PTFE or Graphoil |
| Max Pressure | 6,000 psi |
