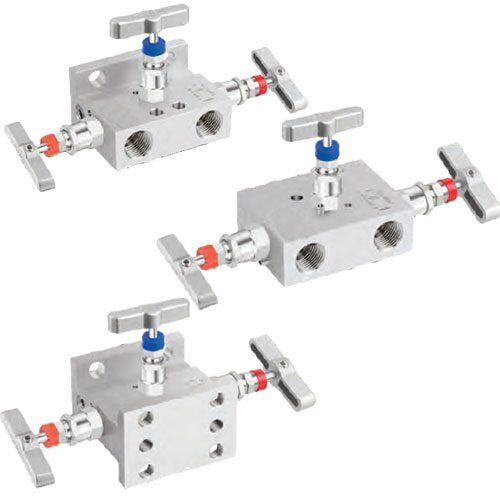

MVA 3-HANDLE MANIFOLDS MVA3SS2T WinSMART™
$ 1,144
Part No: MVA3SS2T
MVA 3-HANDLE MANIFOLDS This 316 stainless steel manifold features a three-handle design with soft seats and PTFE packing, offering a 6,000 psi pressure rating. Ideal for use in process systems that require precise control of pressure and equalization, especially with Winters LY36 Series transmitters.
Description
MVA 3-HANDLE 316SS 1/2″ NPT F x FLANGE, SOFT, PTFE, 6,000 PSI
DESCRIPTION & FEATURES
- Ruggedly designed for differential pressure transmitters and impulse lines.
- Three-handle configuration with two isolation valves and one equalizing valve.
- Available in pipe-to-pipe, pipe-to-flange, and flange-to-flange configurations.
- Multiple construction variants to accommodate different media requirements.
- Options for soft and hard seats, with pressure ratings of 6,000 psi and 10,000 psi.
- PTFE packing is standard; Graphoil packing is available upon request.
- CRN available for compliance in Canada.
- Backed by a 5-year warranty for reliability and peace of mind.
APPLICATIONS
- Designed for seamless installation with Winters LY36 Series and other differential pressure transmitters, with M10x45 bolts.
- Essential for process and industrial environments where manifolds enable shutdowns for testing, repair, and upgrades of instruments.
SPECIFICATIONS
| Feature | Details |
|---|---|
| Part Number | MVA3SS2T |
| Connection | 1/2″ Female x Flange |
| Handles | Straight or Angled |
| Material | 316 Stainless Steel |
| Seat Type | Soft Seat |
| Packing Material | PTFE (Graphoil optional) |
| Max Pressure | 6,000 psi |
