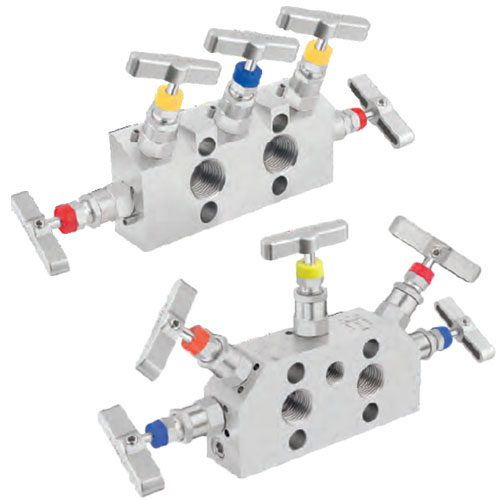

MVA 5-HANDLE ANGULAR MANIFOLD VALVE MVA5ASS2D WinSMART™
$ 2,176
Part No: MVA5ASS2D
MVA 5-HANDLE ANGULAR 316SS 1/2″ NPT F x 1/2″ NPT F, SOFT, PTFE, 6000 PSI – This 5-handle manifold valve includes two isolation valves, one equalizing valve, and two vent valves. It is rated for 6,000 psi, with both straight and angled installation patterns, PTFE packing, and an optional Graphoil sealing material.
Description
MVA 5-HANDLE ANGULAR 316SS 1/2″ NPT F x 1/2″ NPT F, SOFT, PTFE, 6000 PSI
DESCRIPTION & FEATURES
- Compact, wafer design for direct mounting.
- Rugged design for use with differential pressure transmitters and impulse lines.
- 5-handle configuration: two isolation valves, one equalizing valve, and two vent valves.
- Straight and angled patterns to suit all installation needs.
- Available in various construction options to handle diverse media requirements.
- Soft and hard seat options; pressure rated for 6,000 psi and 10,000 psi.
- PTFE packing standard, with optional Graphoil for enhanced sealing.
- CRN available upon request.
- 5-year warranty included.
APPLICATIONS
- Compatible with Winters LY36 Series and other differential transmitters (requires M10x45 bolts).
- Essential for industrial and process environments, providing shutdown capabilities for testing, repair, and upgrades of instruments.
SPECIFICATIONS
| Feature | Details |
|---|---|
| Part Number | MVA5ASS2D |
| Connection | 1/2″ NPT F x 1/2″ NPT F Direct Mount |
| Handles | Straight or Angled |
| Material | 316 Stainless Steel |
| Seat Type | Soft Seat |
| Packing Material | PTFE or Graphoil |
| Max Pressure | 6,000 psi |
